Kriegsmarine Flugzeugträger Graf Zeppelin

Manufacturer: Hachette

Scale: 1/200

Additional parts: none

Model build: Jun 2025 -

The Hachette Graf Zeppelin is a 1/200 scale subscription-based model of the uncompleted German aircraft carrier. Upon completion, the model will have dimensions of 131 cm in length, 19 cm in width, and 30 cm in height, with an approximate weight of 8 kg.

The hull construction primarily features solid die-cast metal. The deck incorporates a wood veneer, complemented by components made from ABS plastic and photo-etched (PE) parts. The finished model is designed to include various functionalities, such as light and sound effects, along with movable parts including aircraft propellers, gun emplacements, and aircraft lifts.

The complete model series consists of 140 parts, distributed weekly since January 2024. For those beginning the subscription at a later date, parts are delivered monthly in boxes containing four individual parts. Each part shipment includes a magazine providing construction instructions, an article detailing the Graf Zeppelin's history, and general articles on carrier aviation.

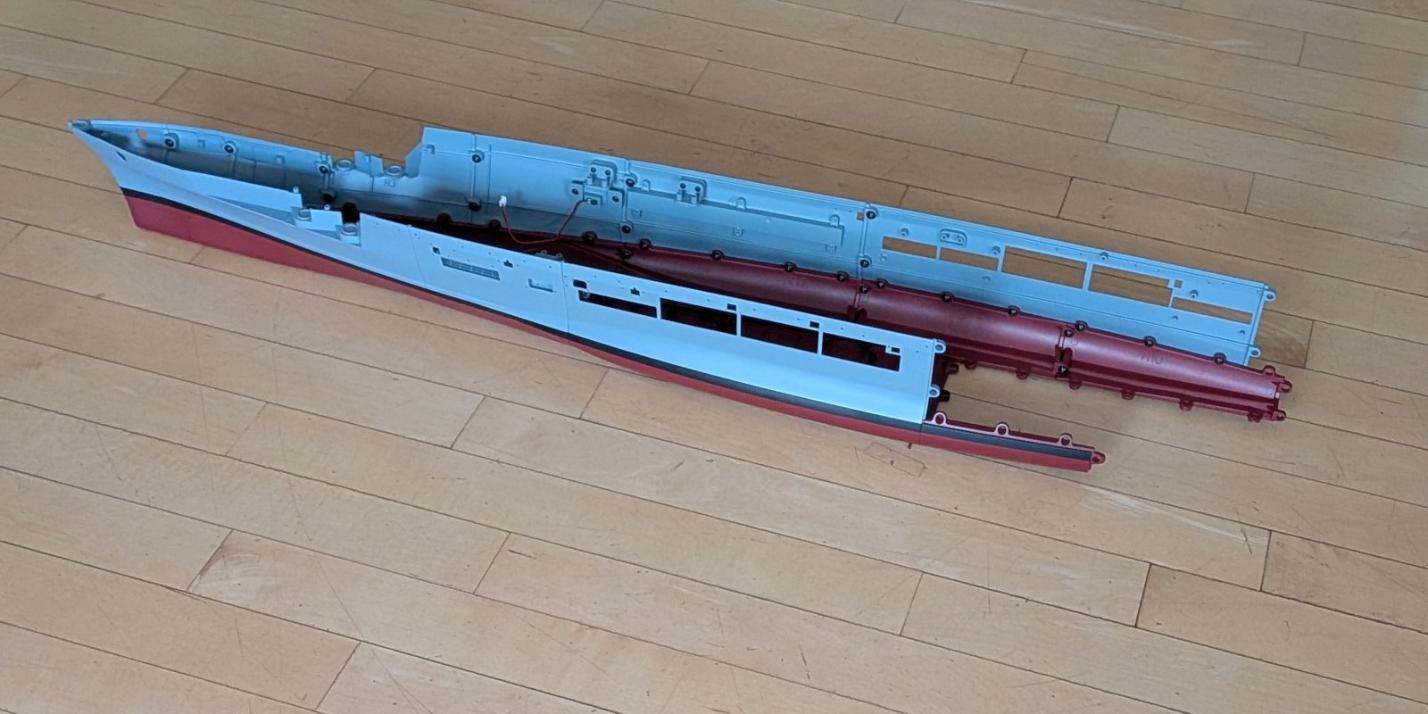

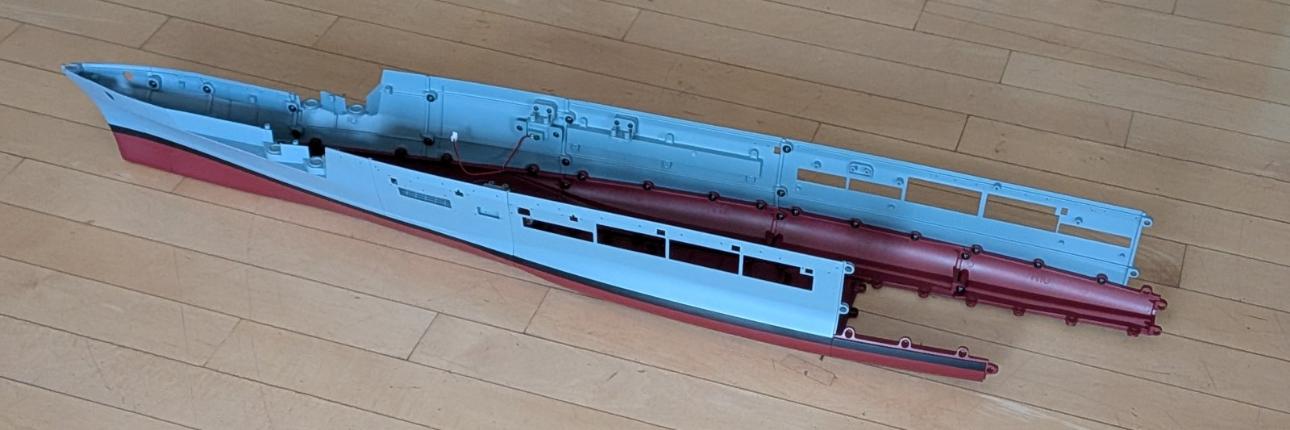

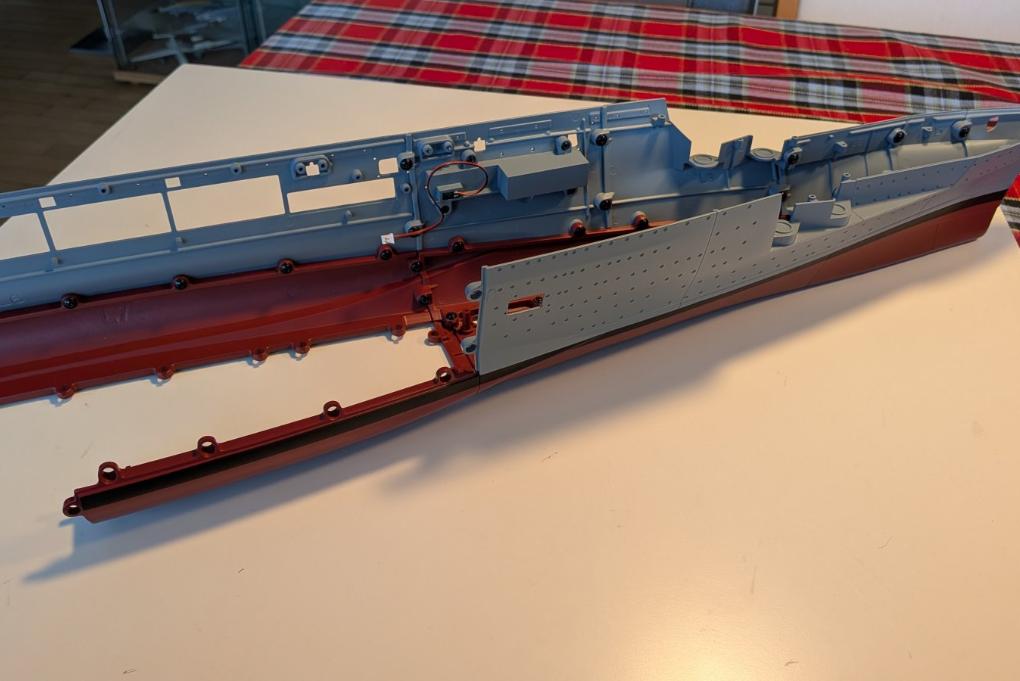

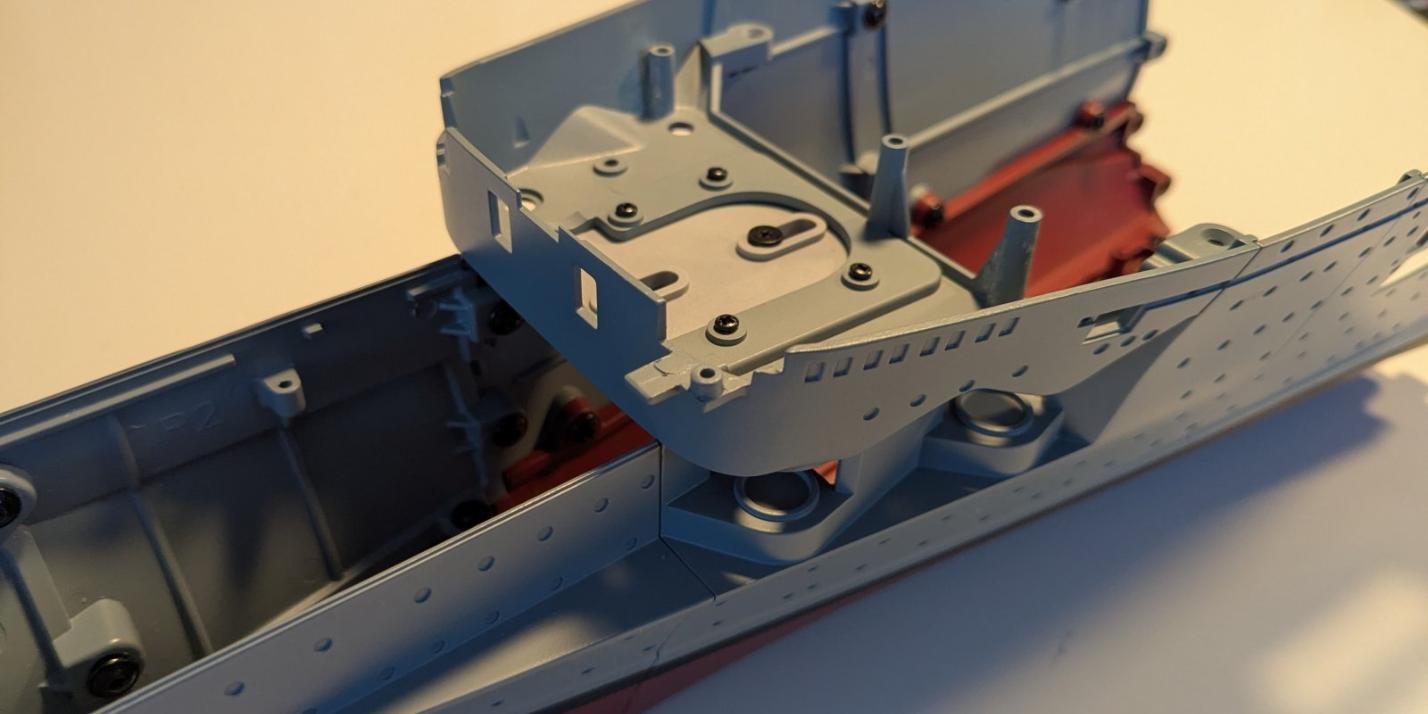

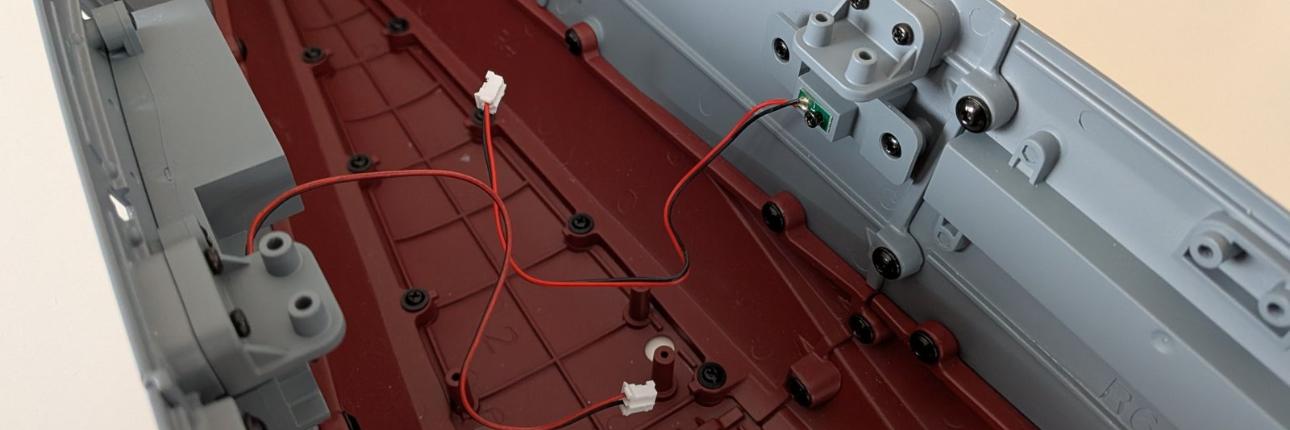

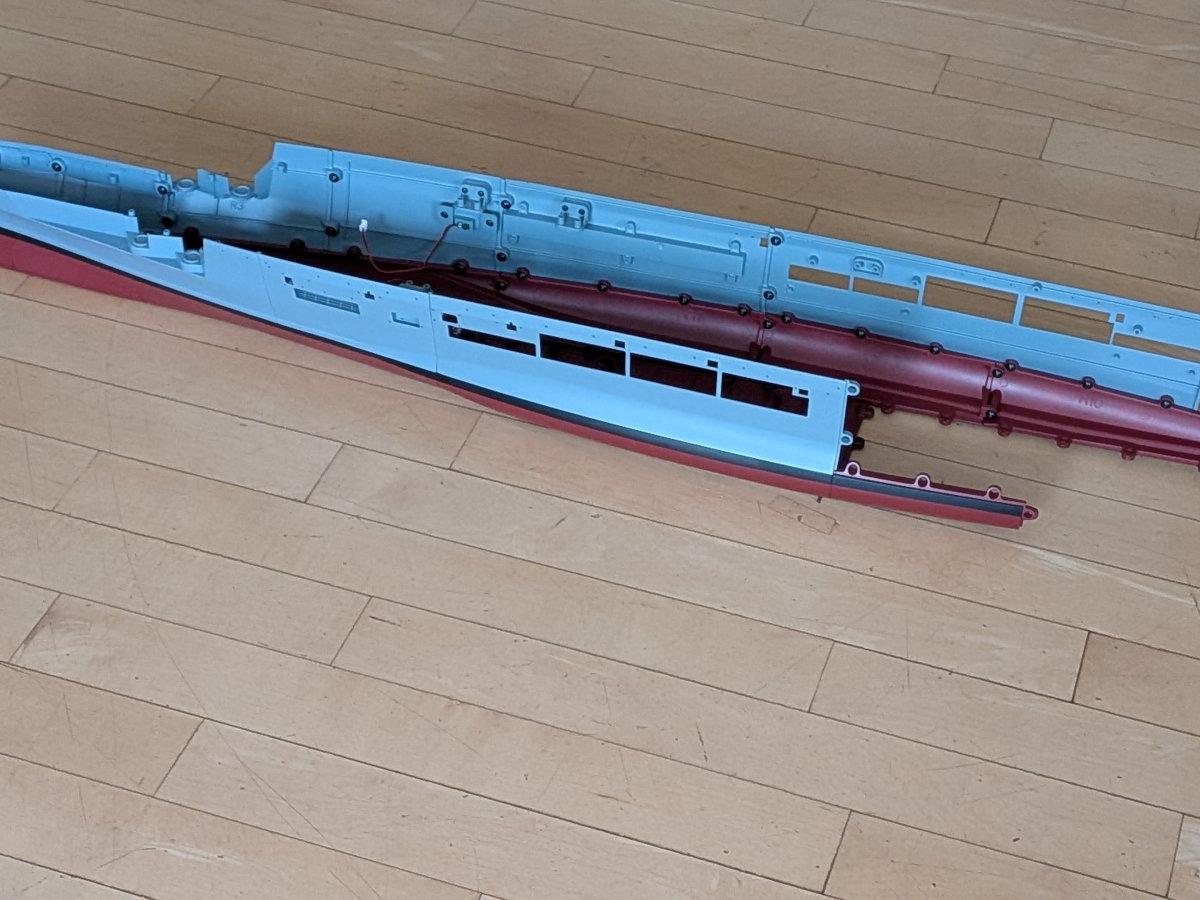

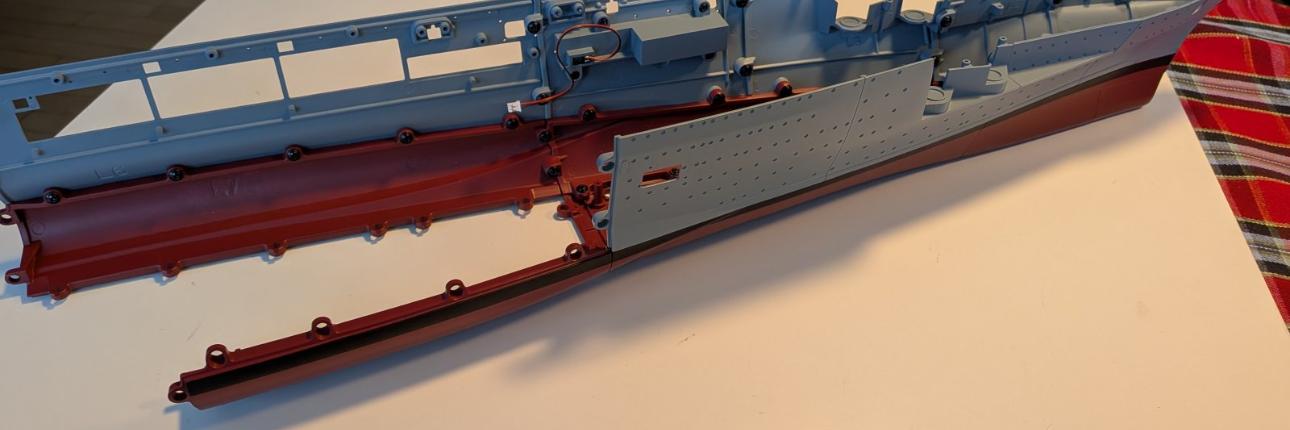

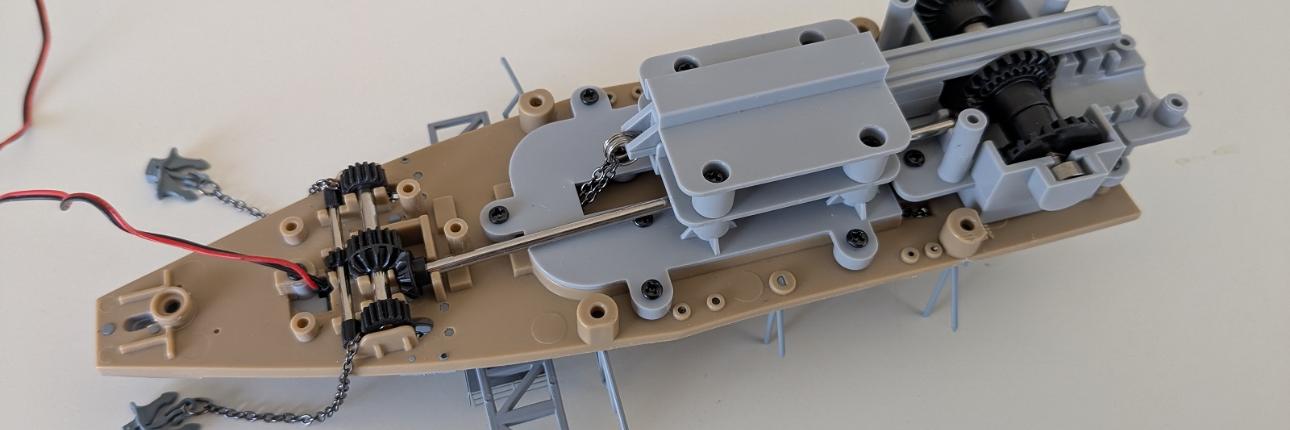

Build progress

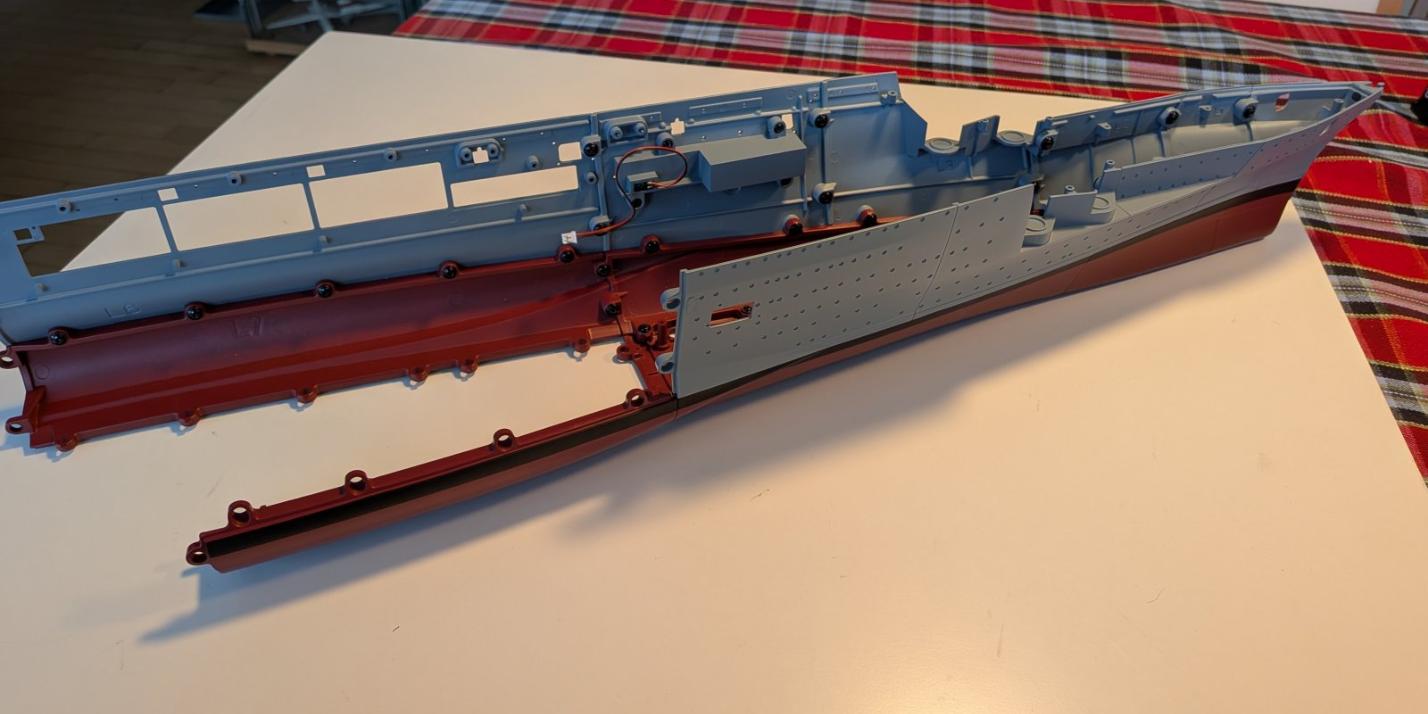

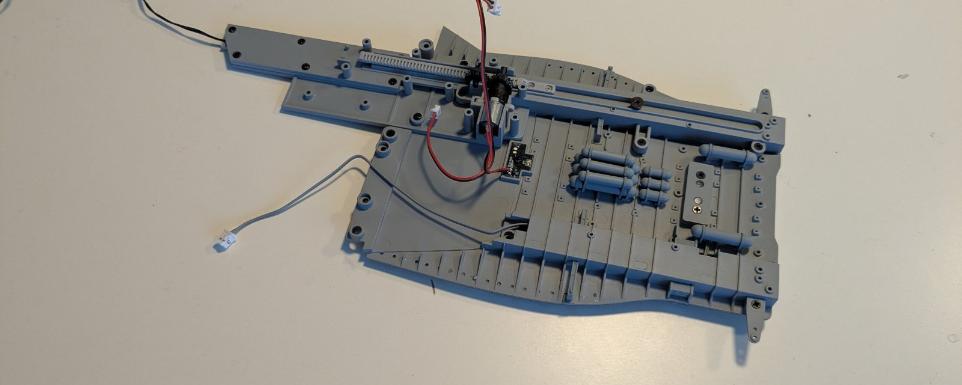

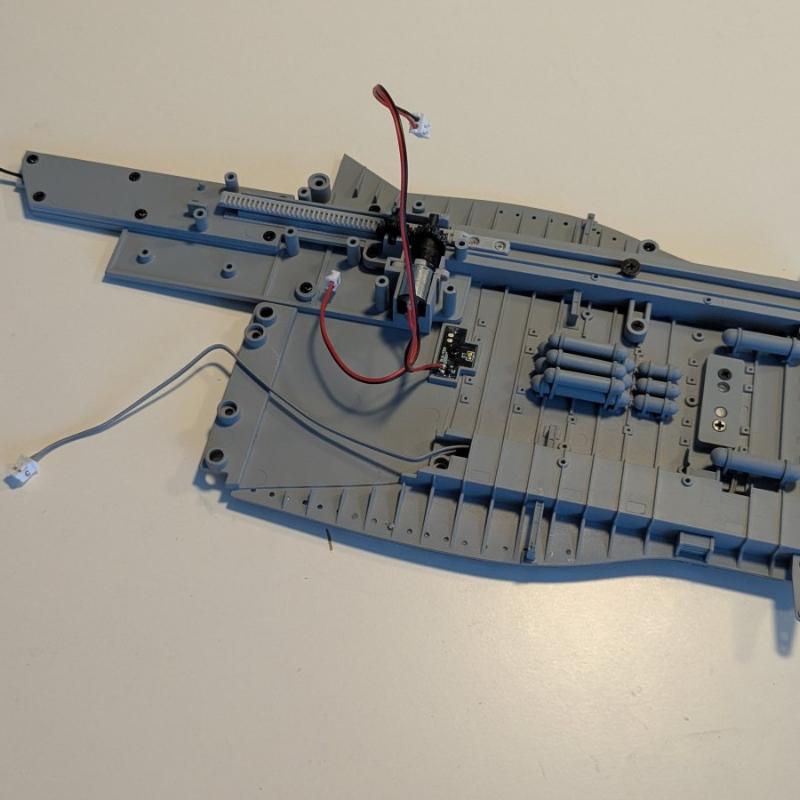

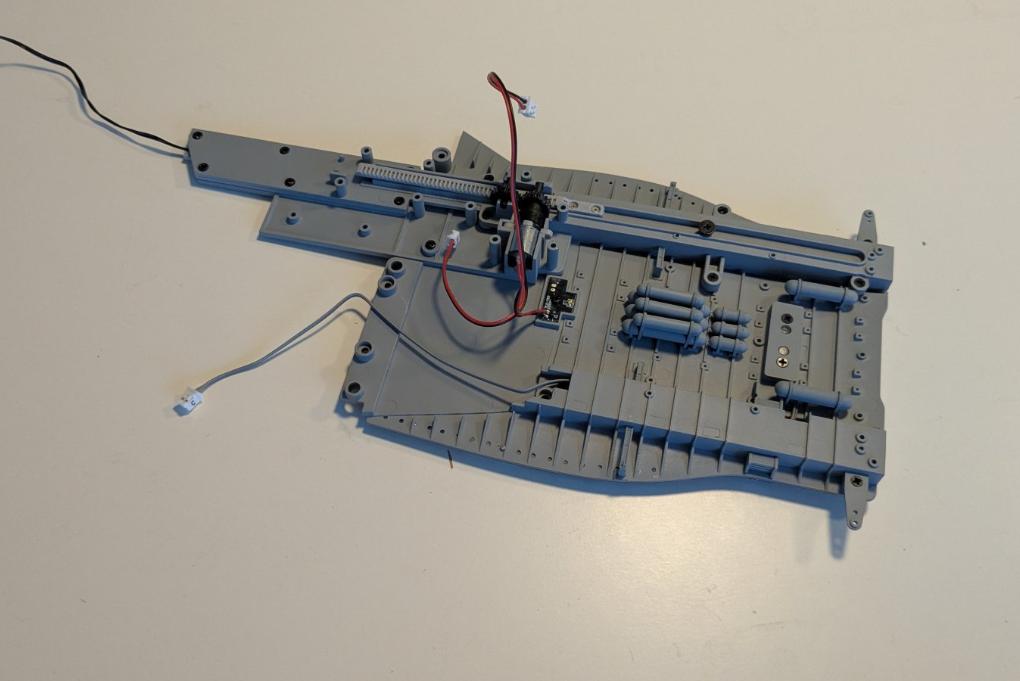

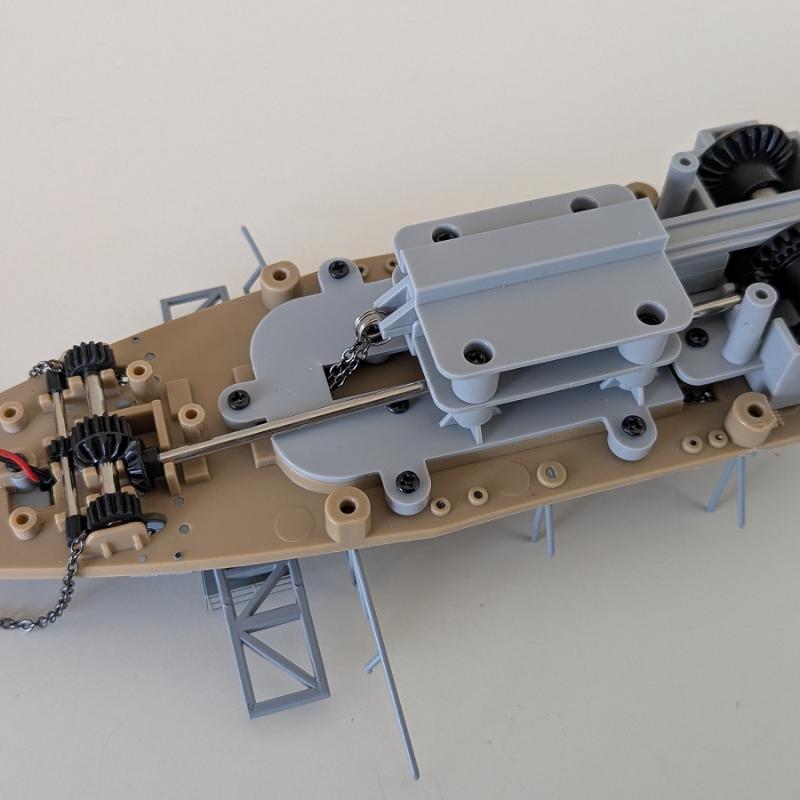

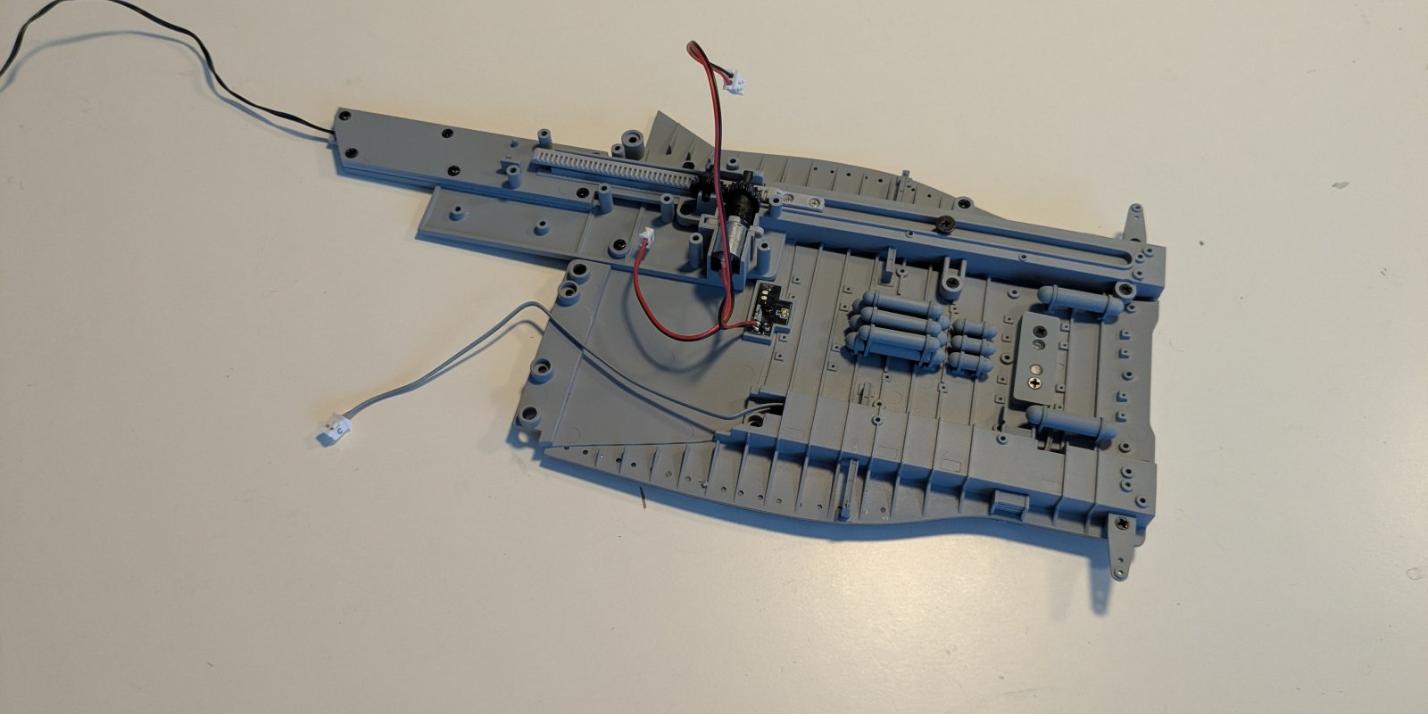

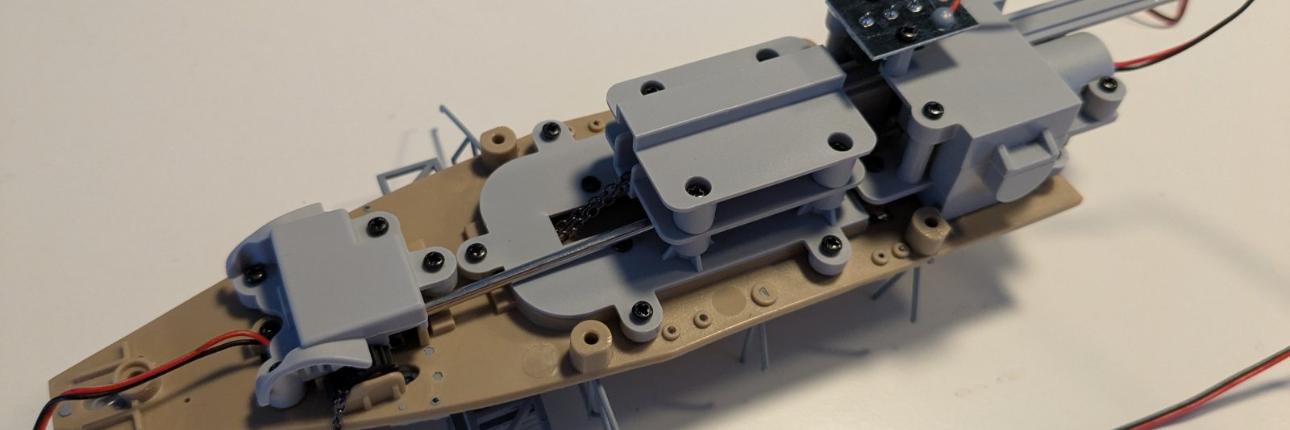

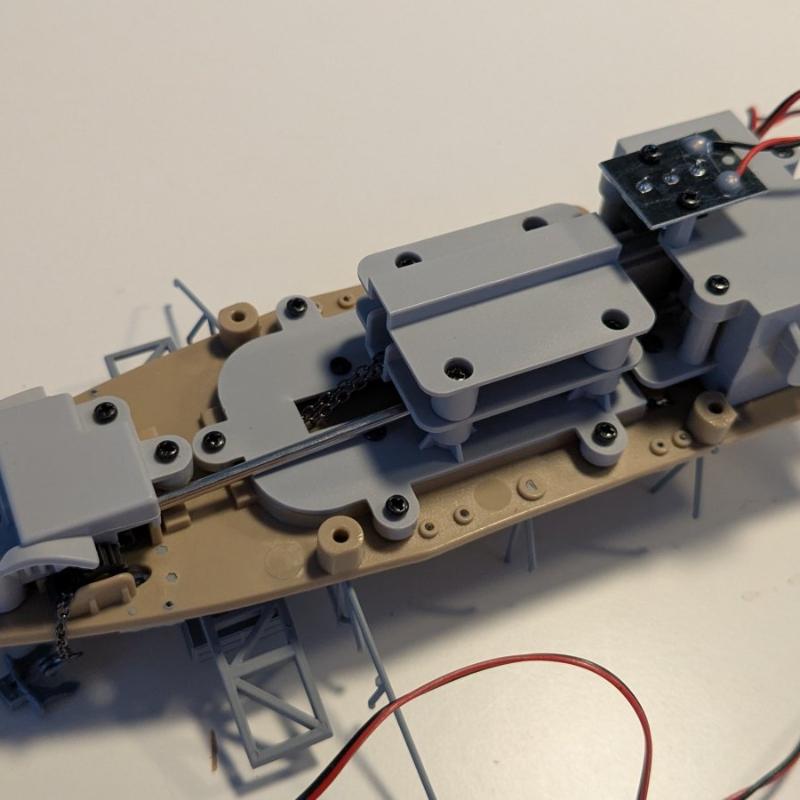

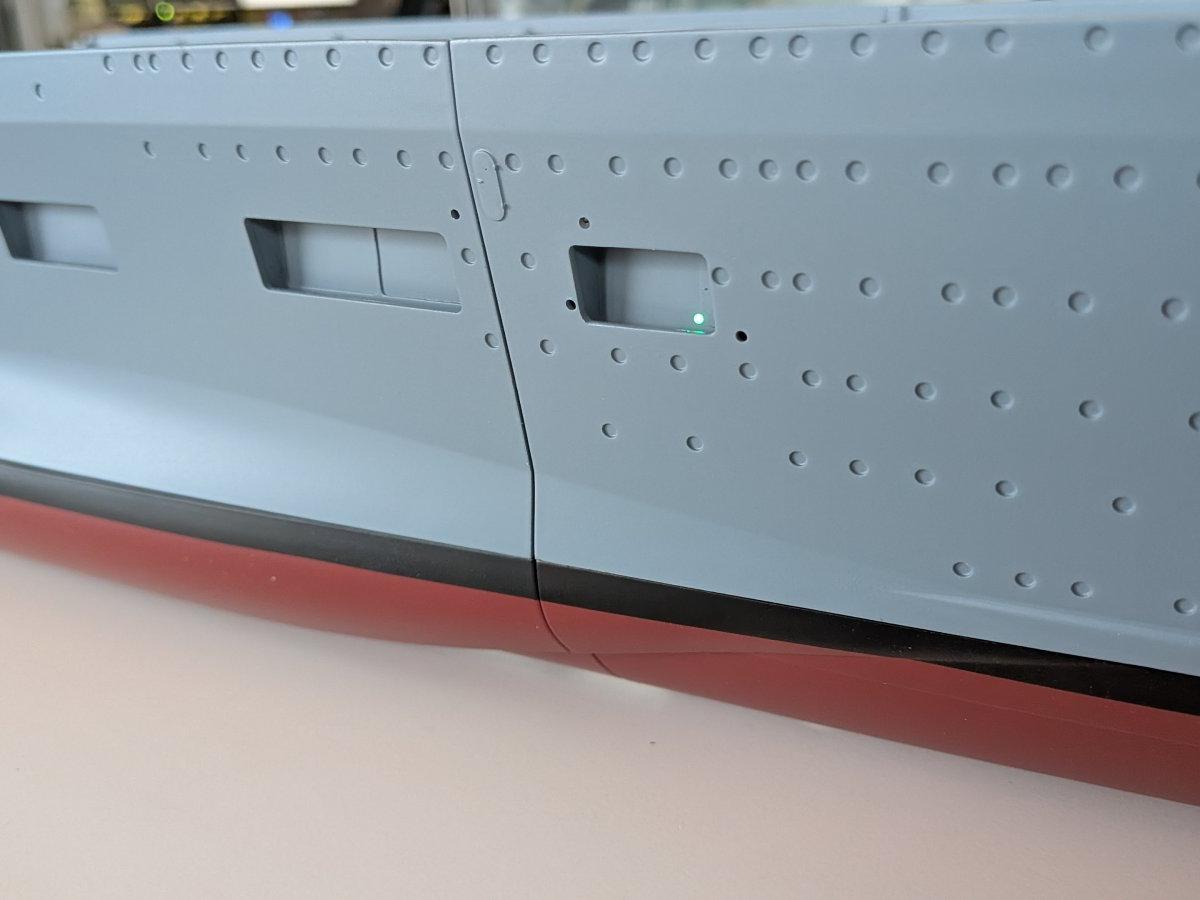

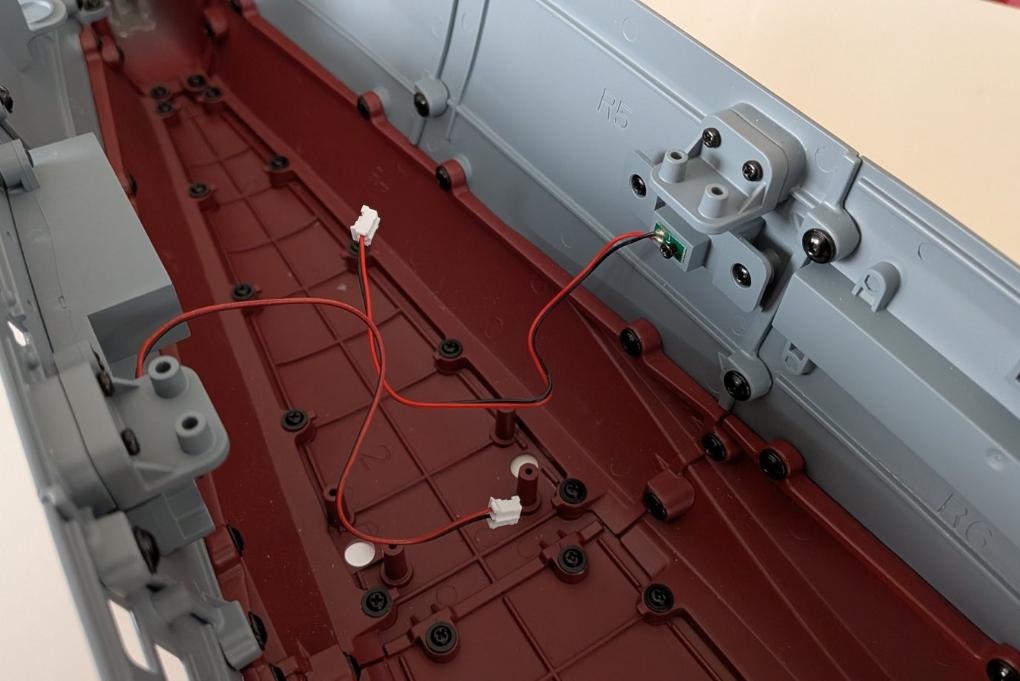

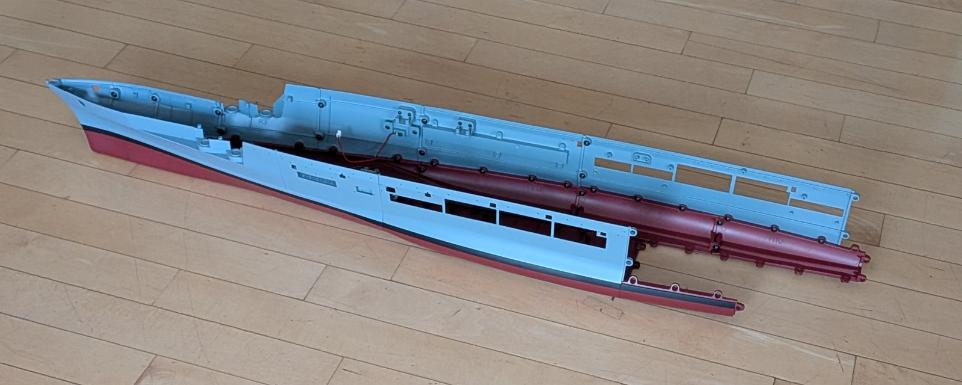

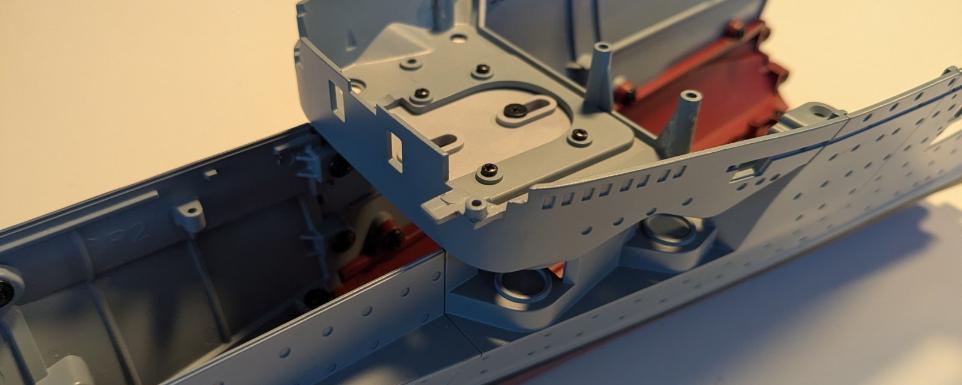

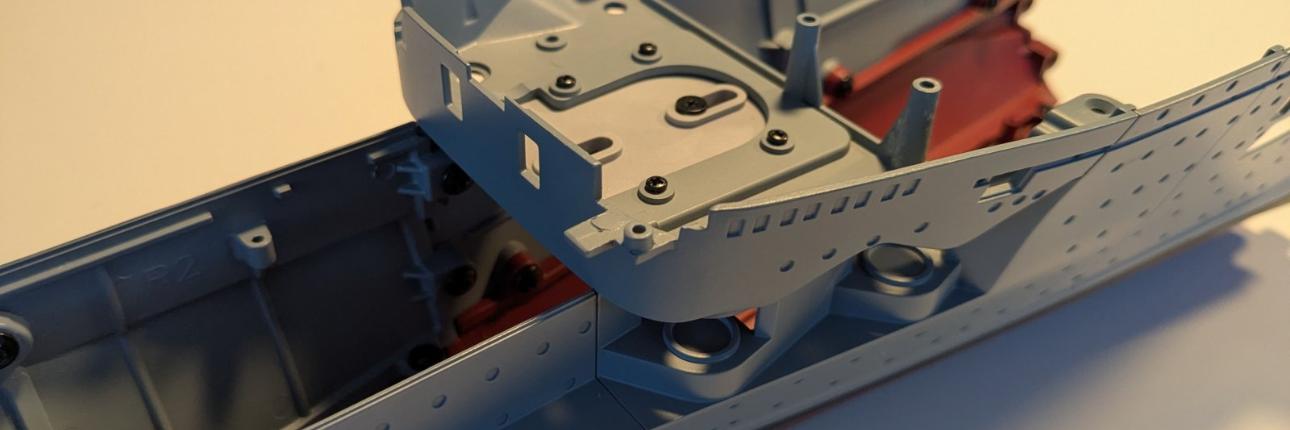

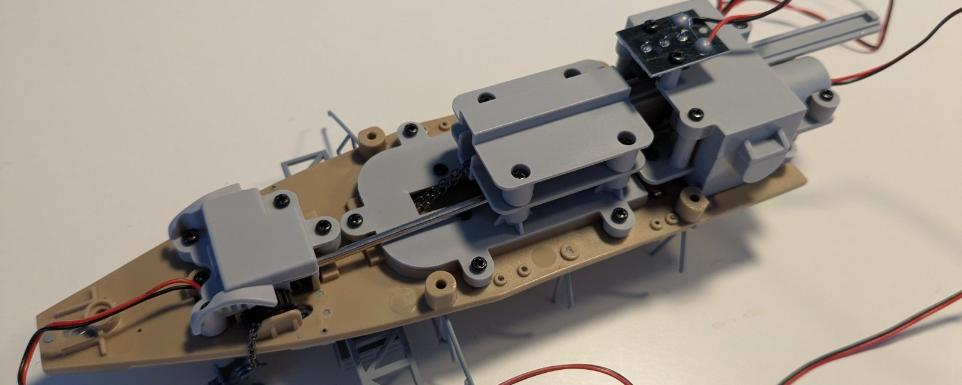

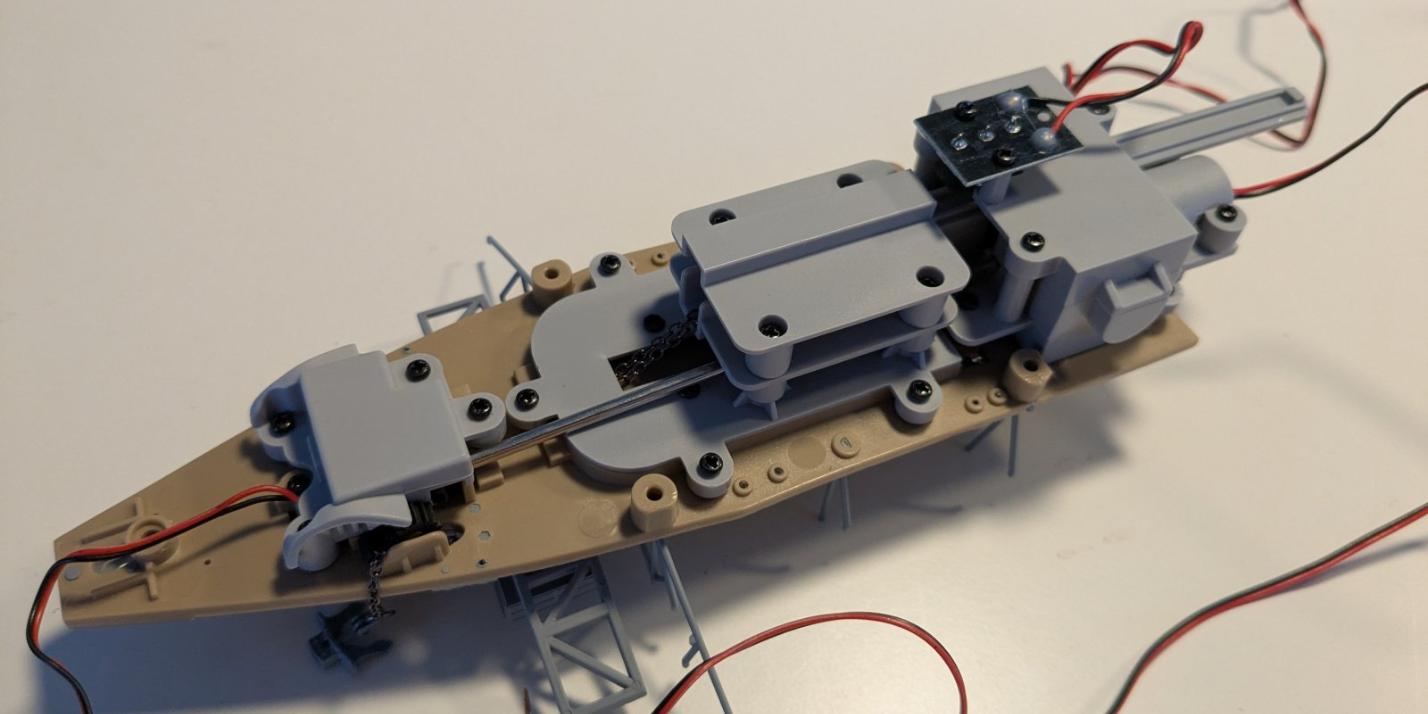

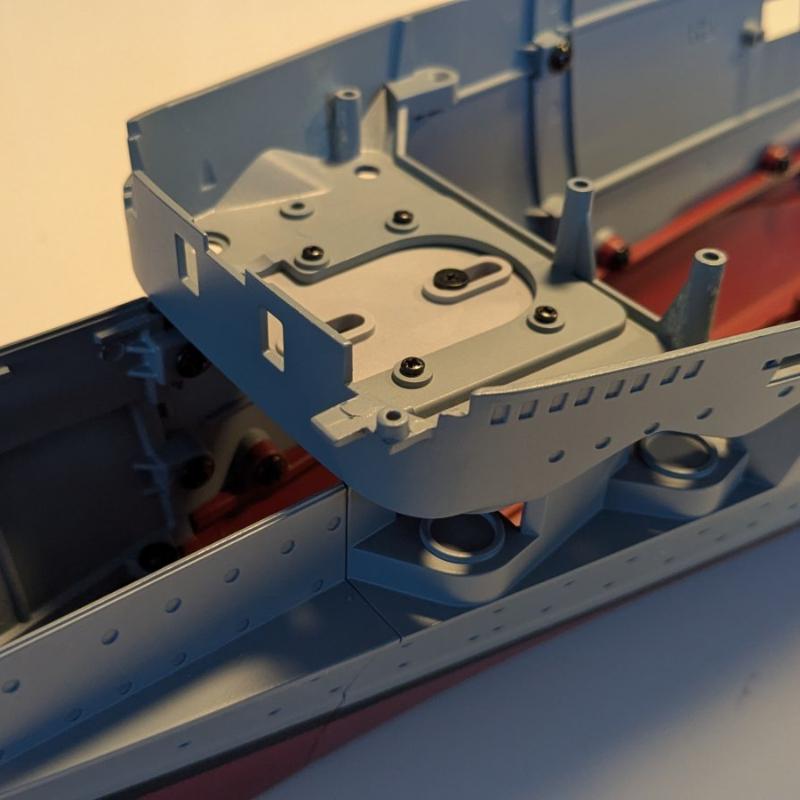

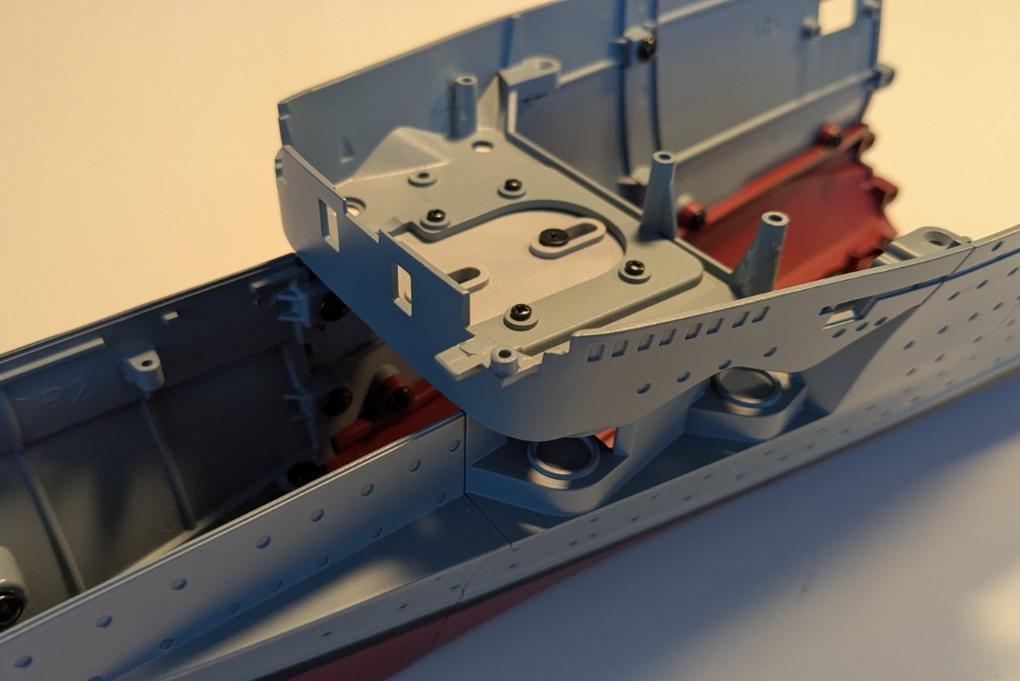

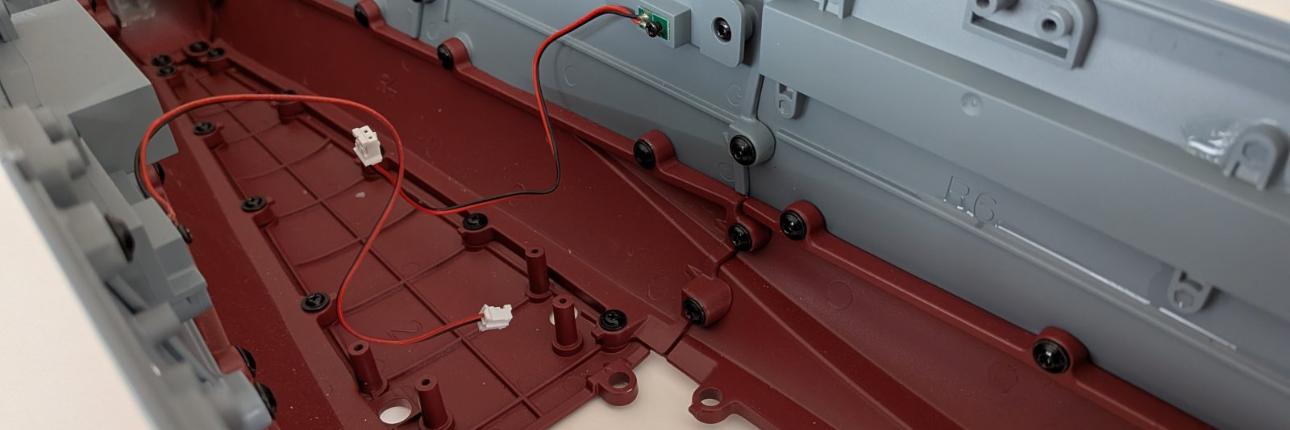

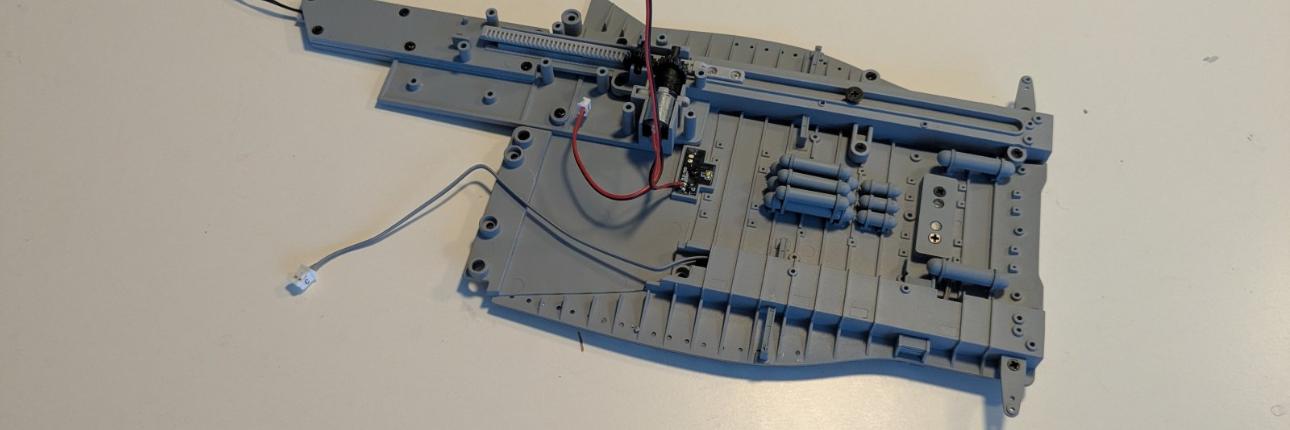

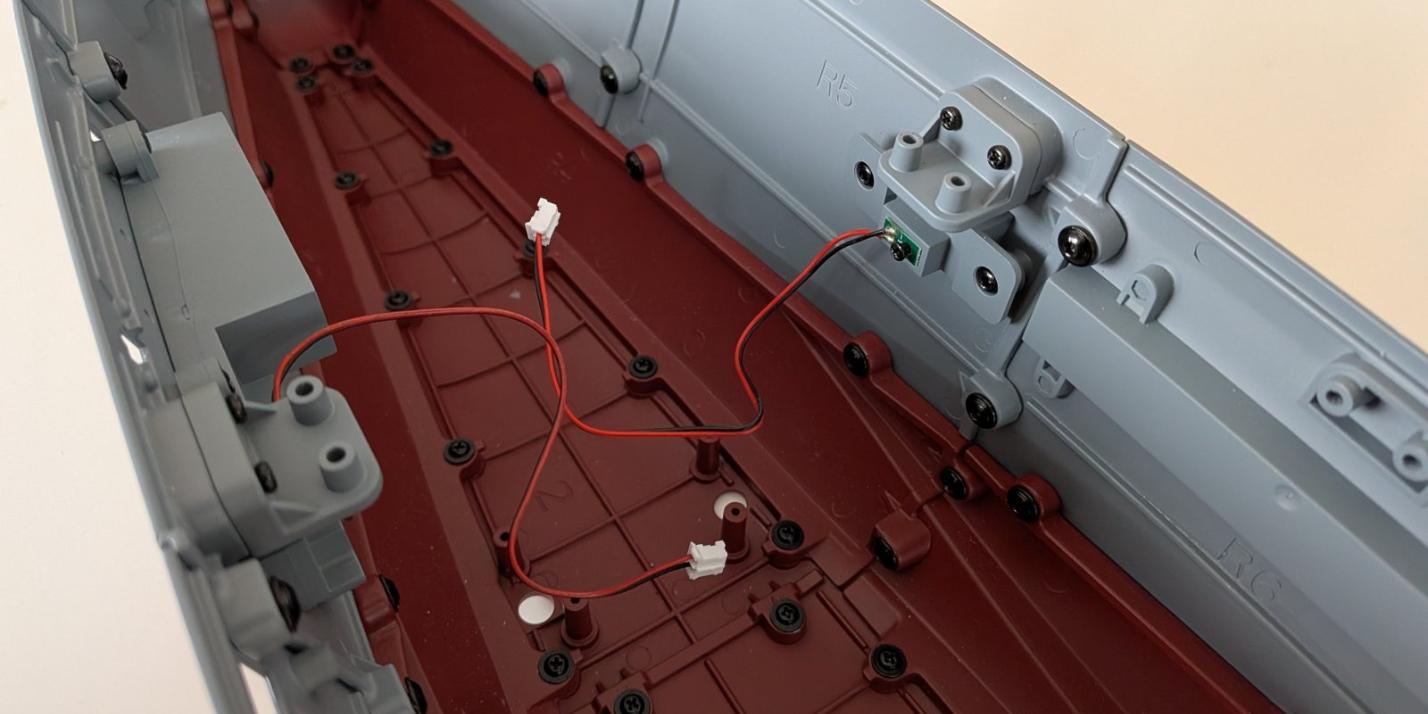

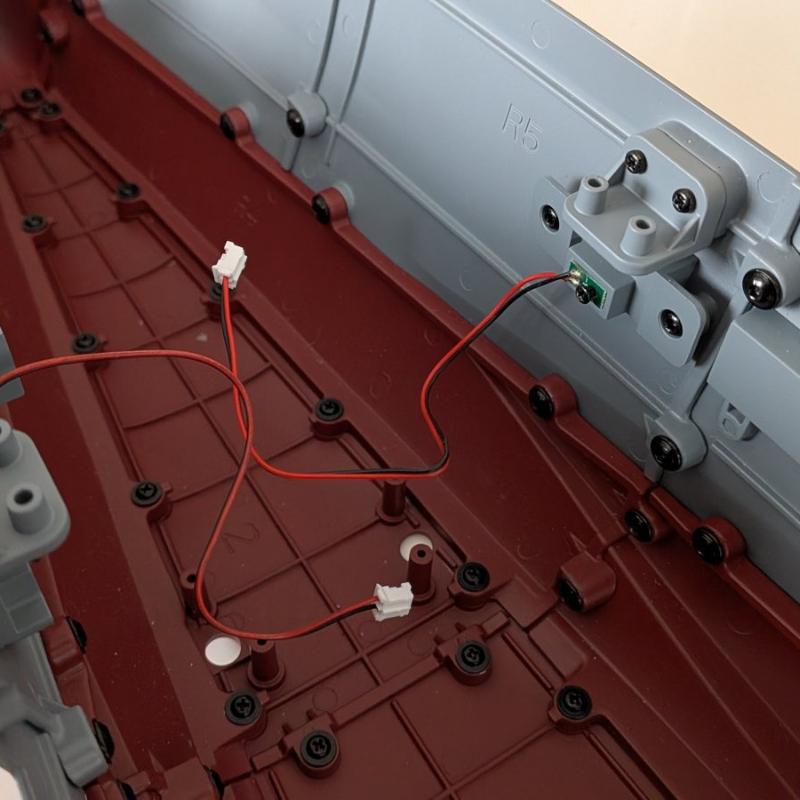

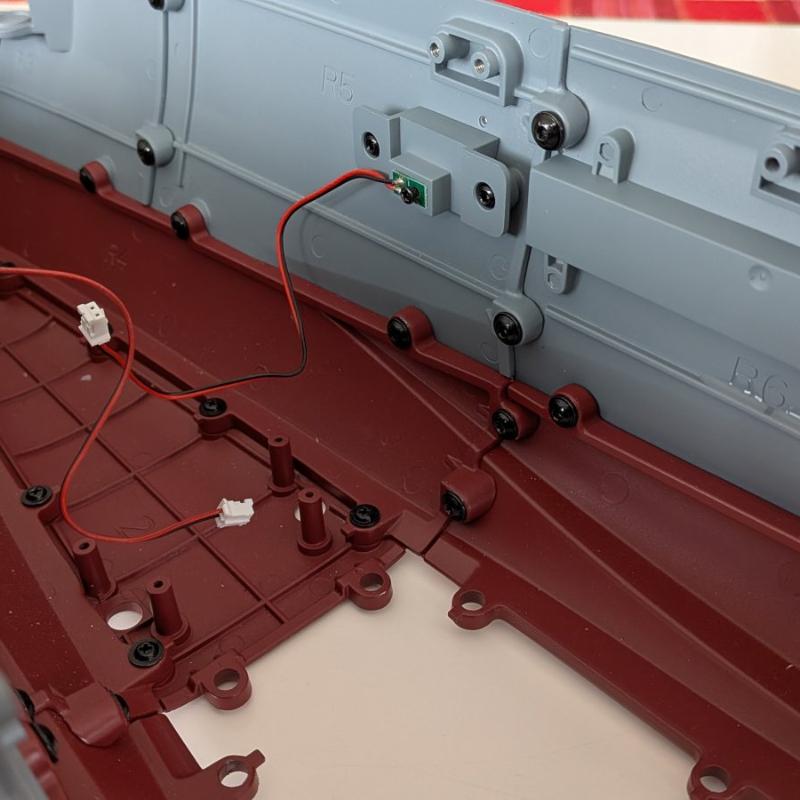

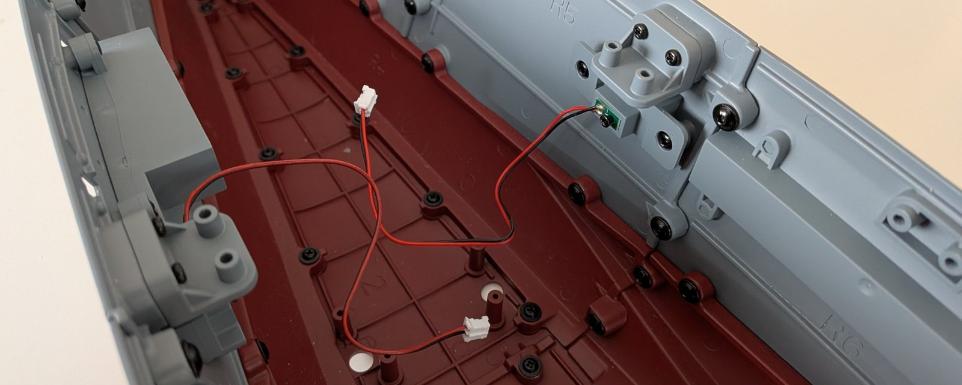

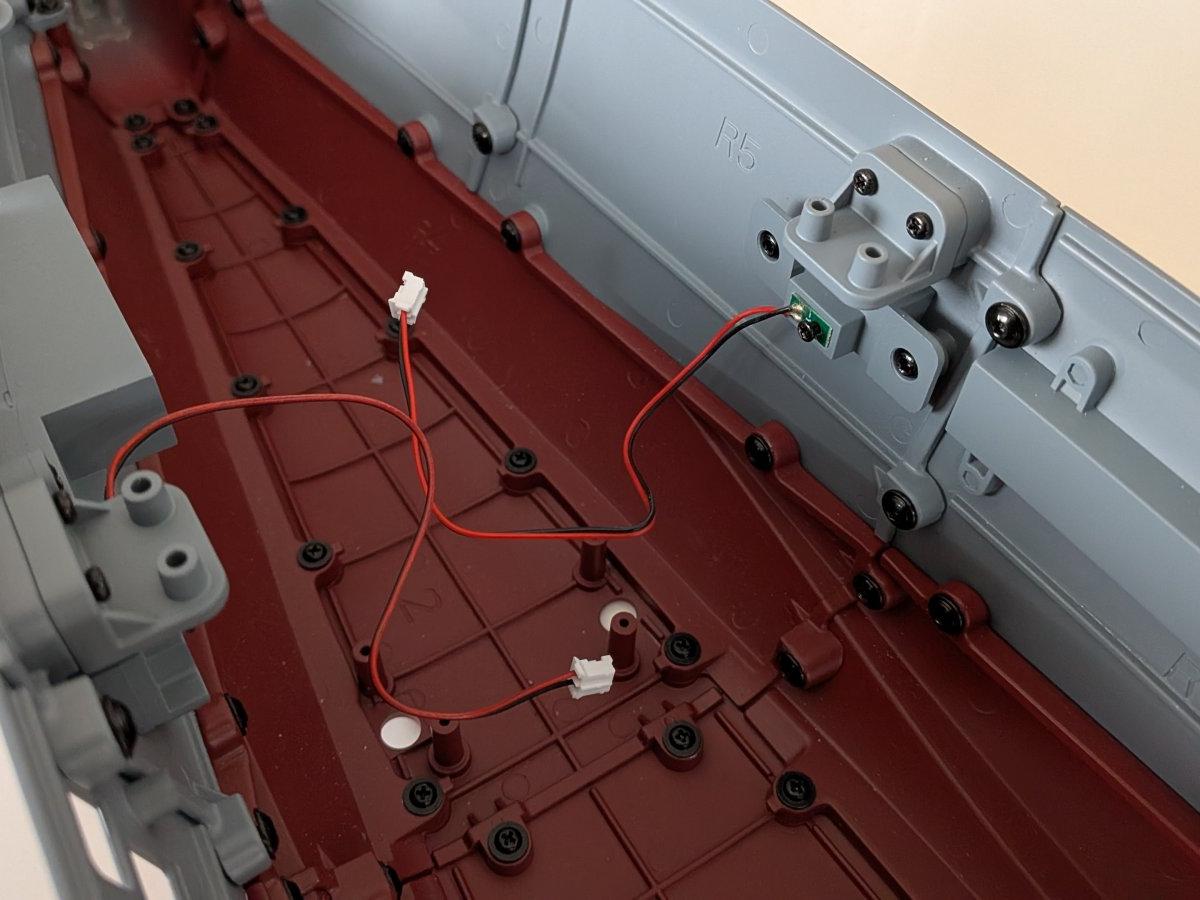

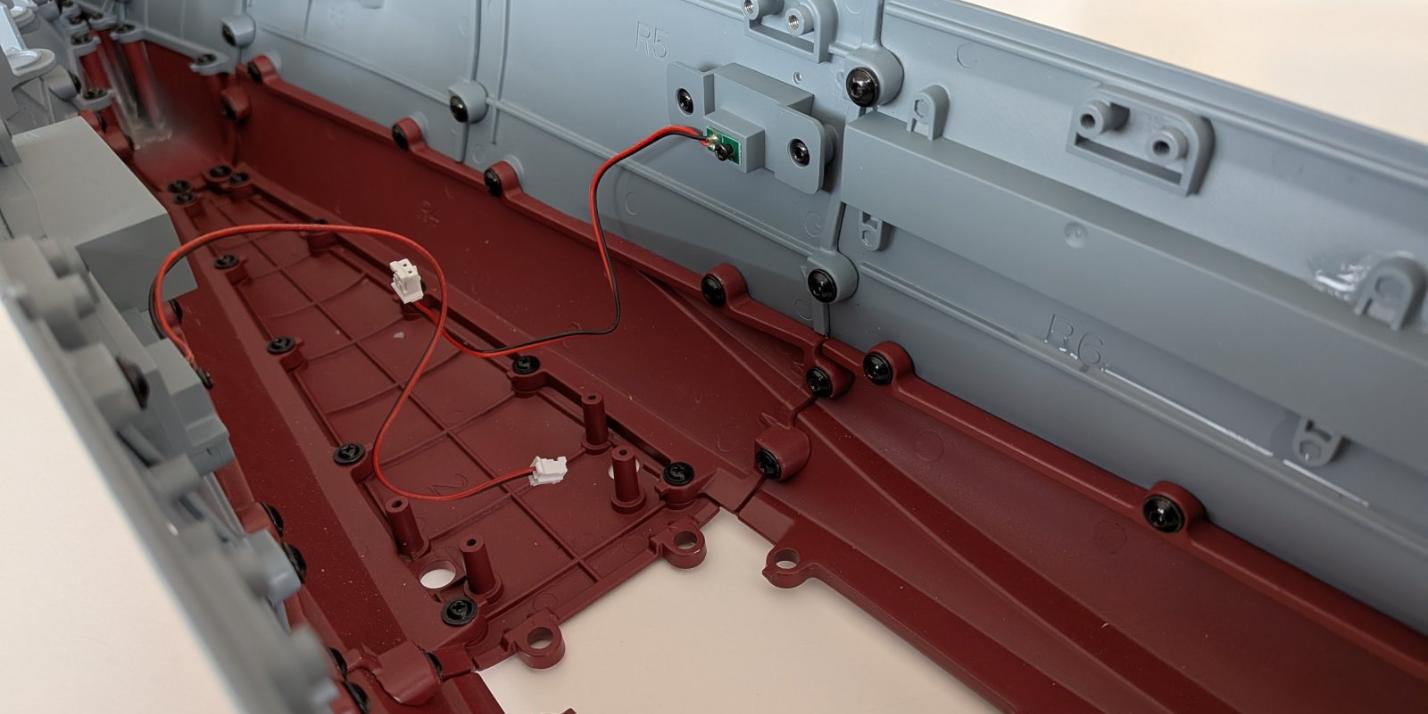

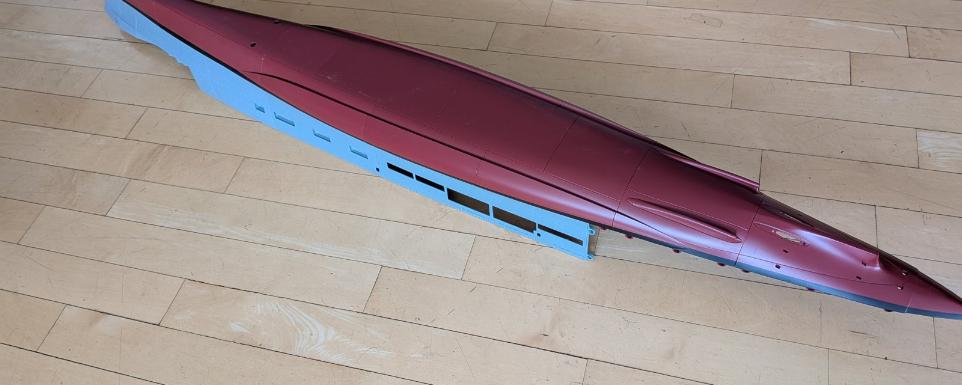

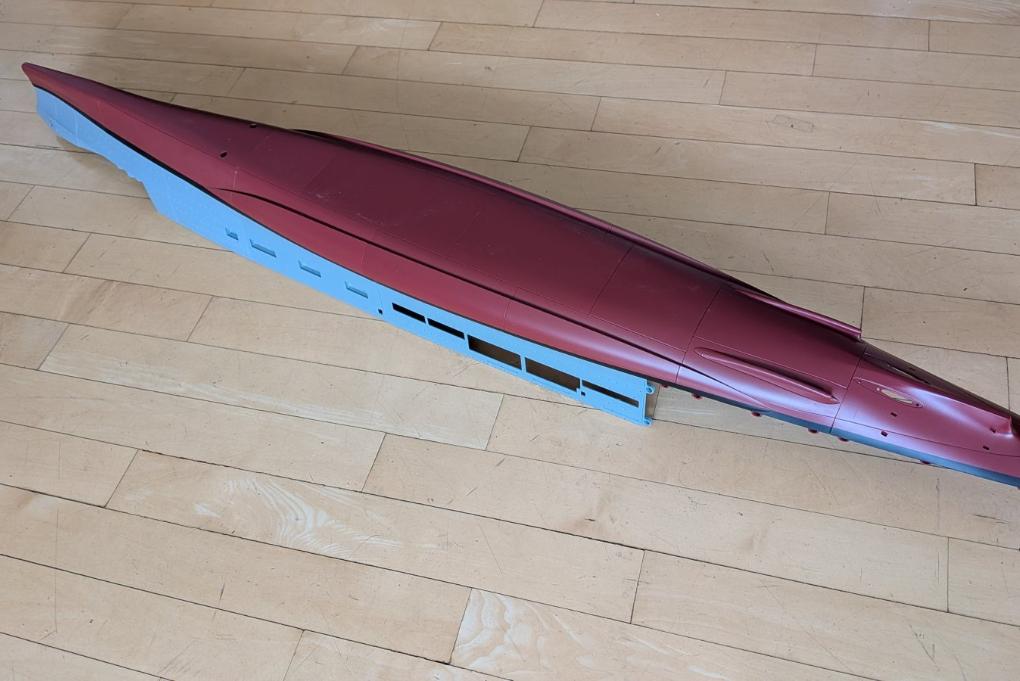

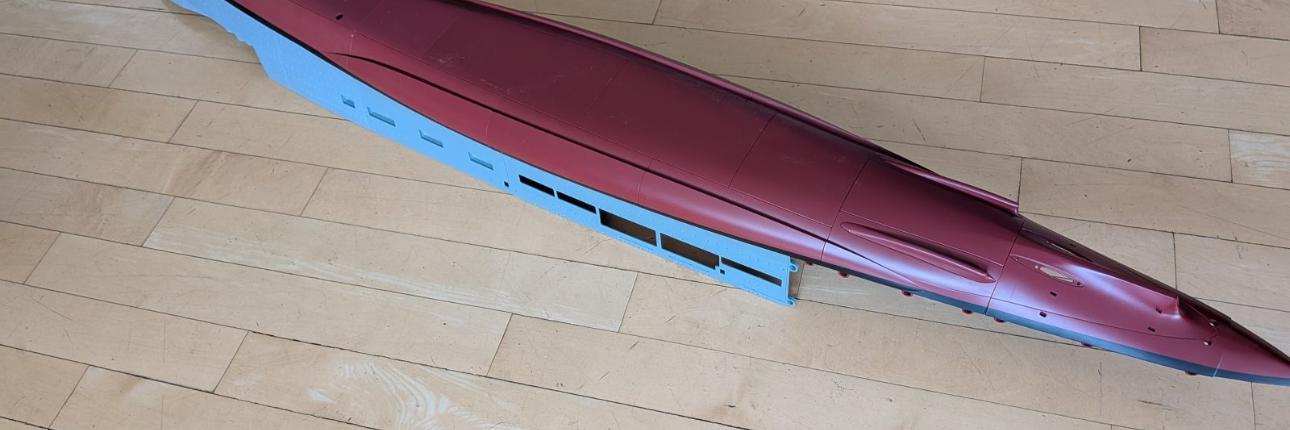

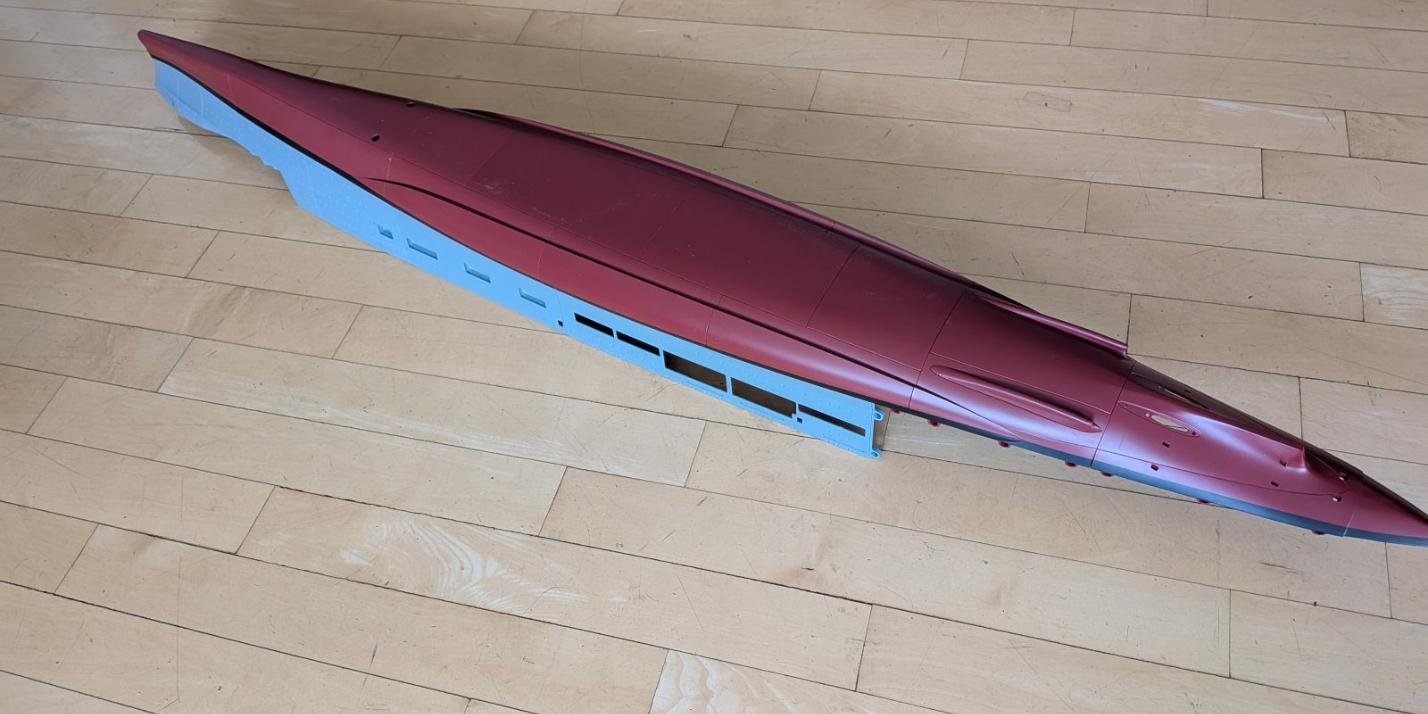

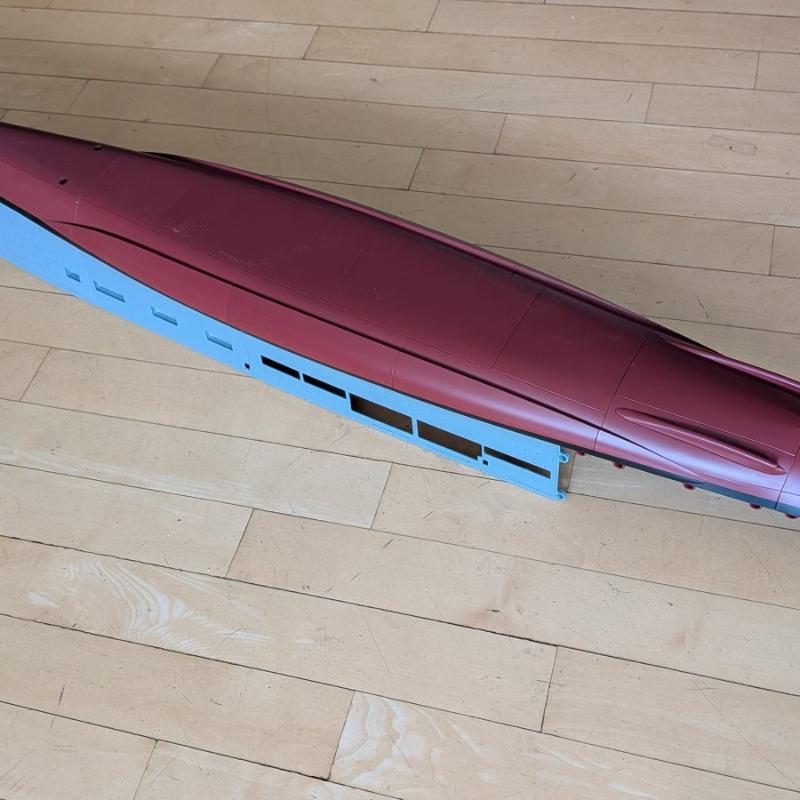

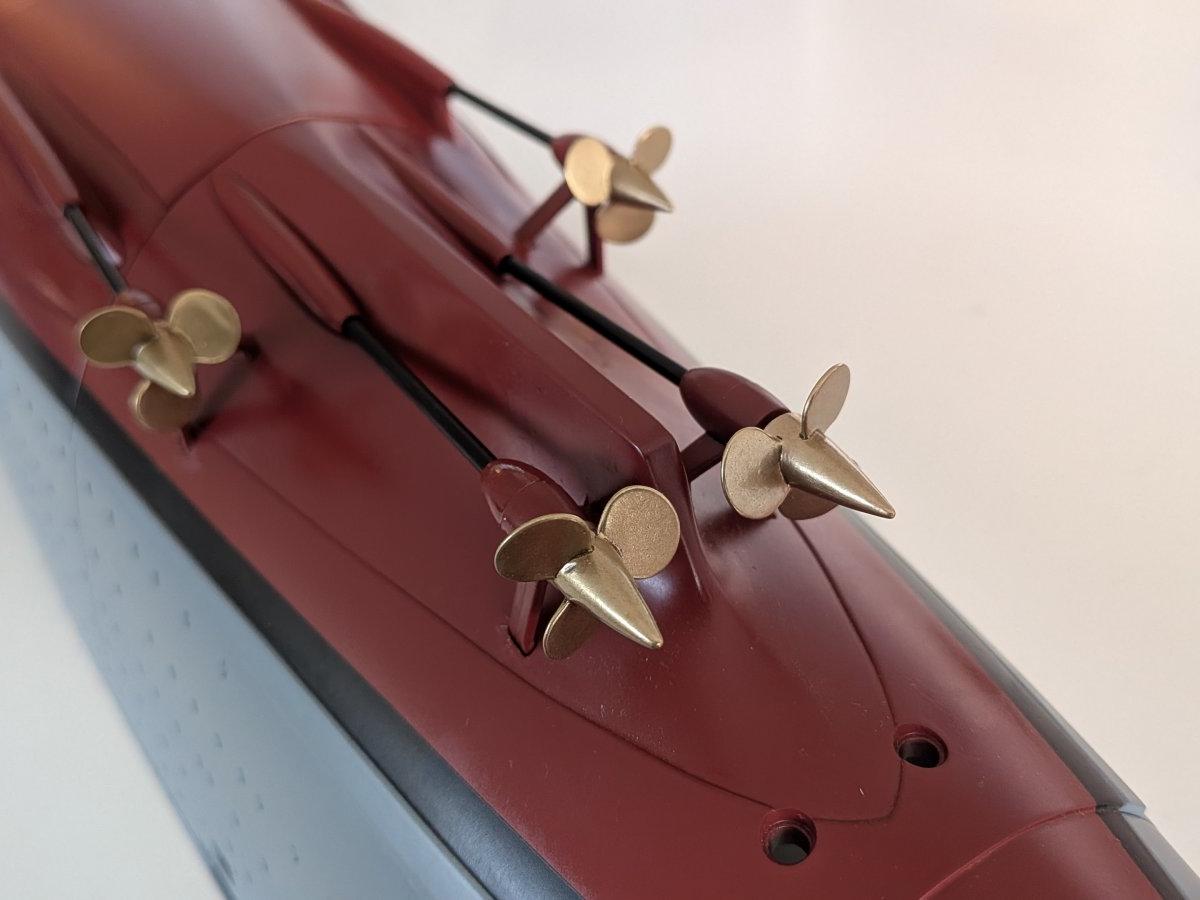

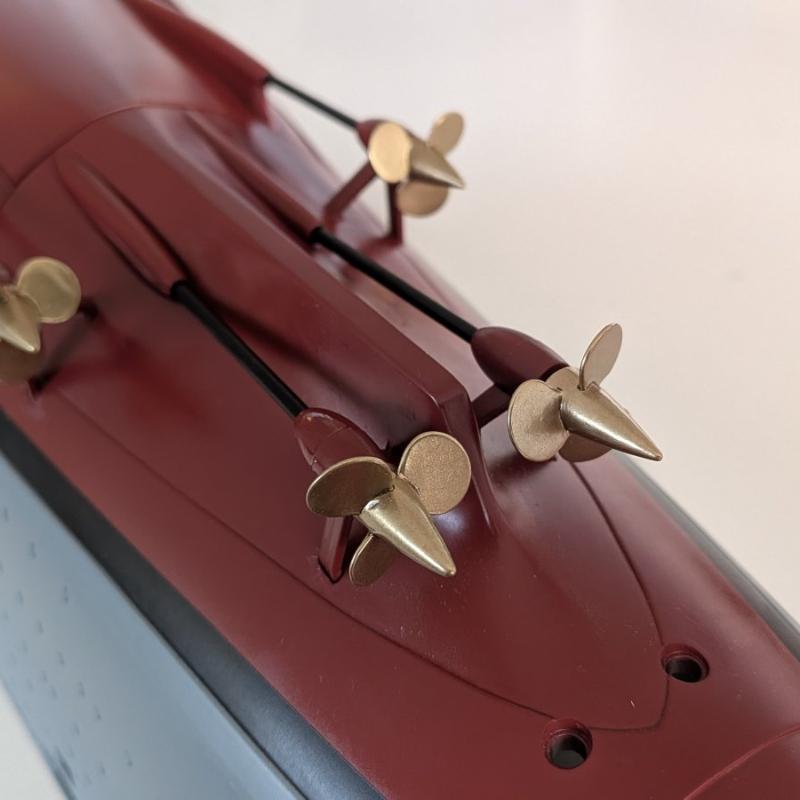

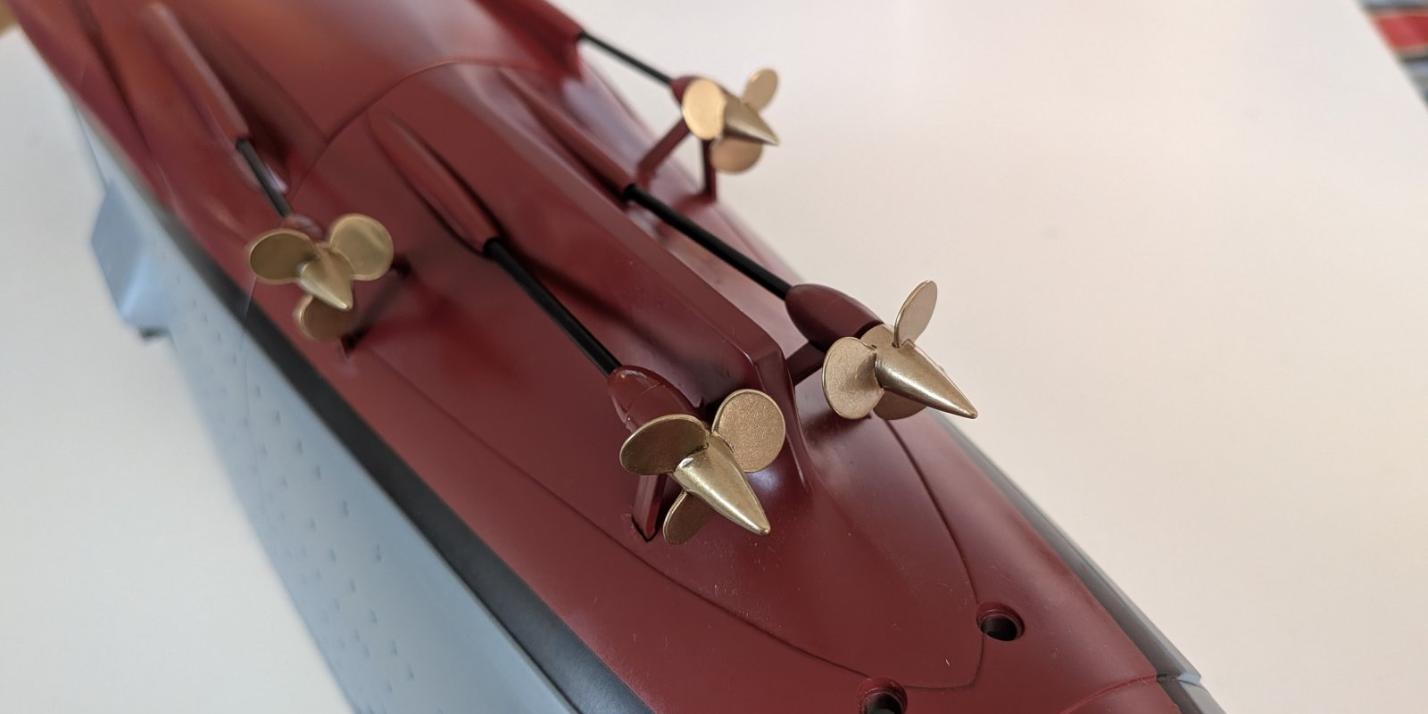

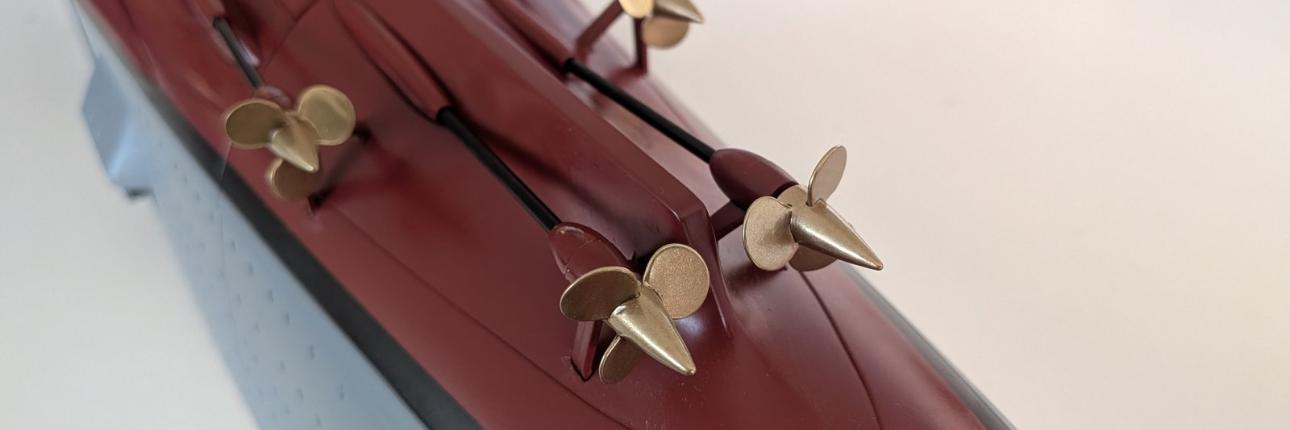

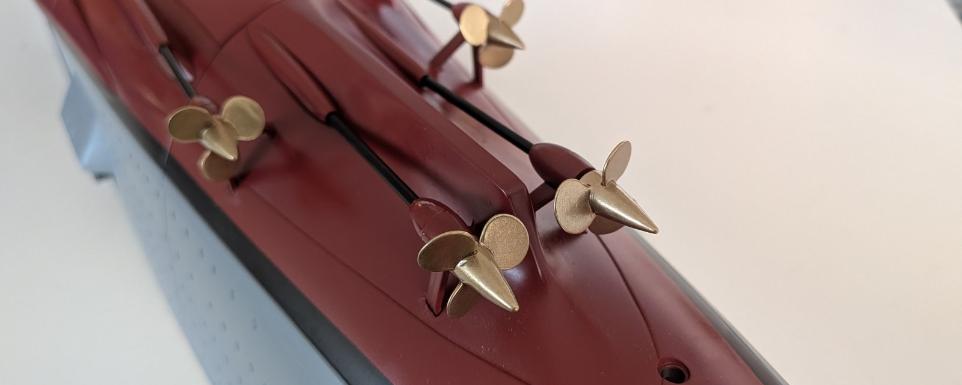

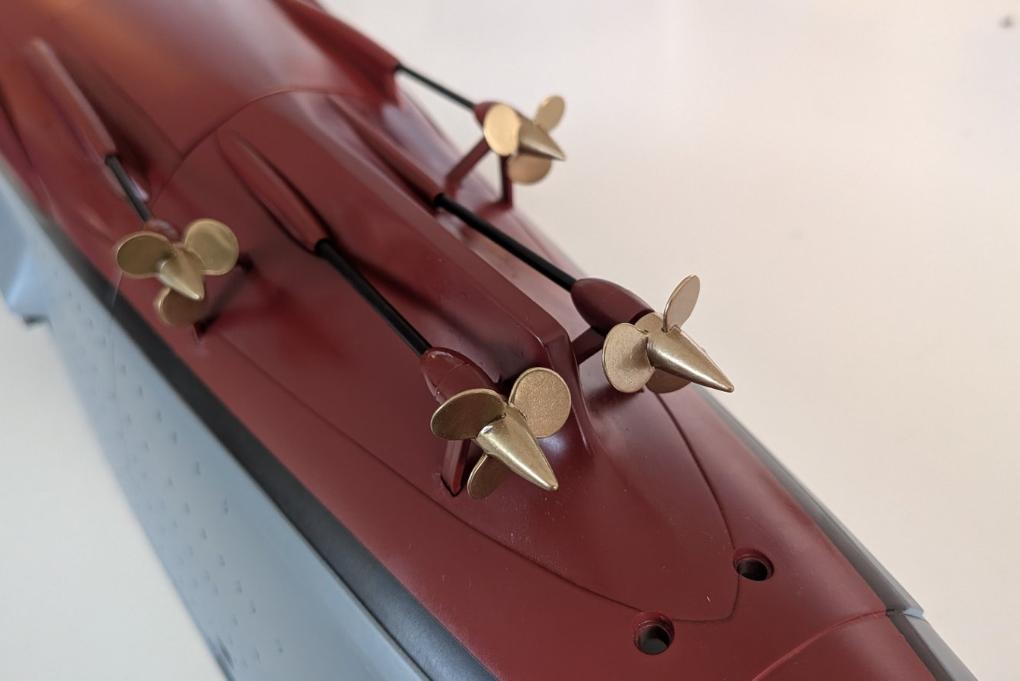

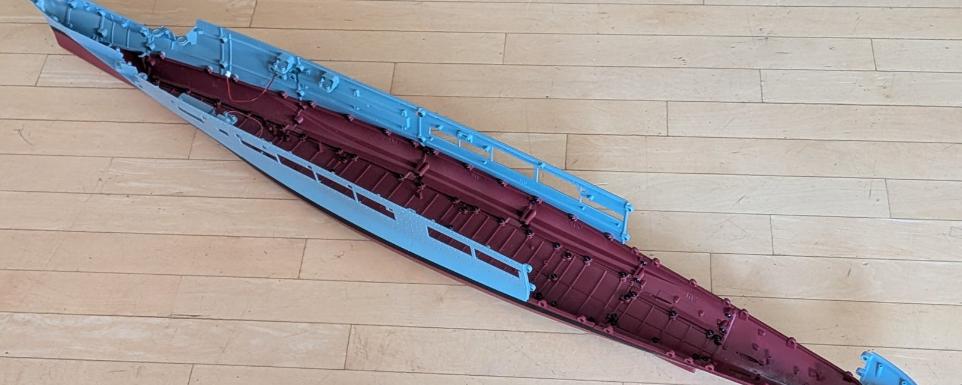

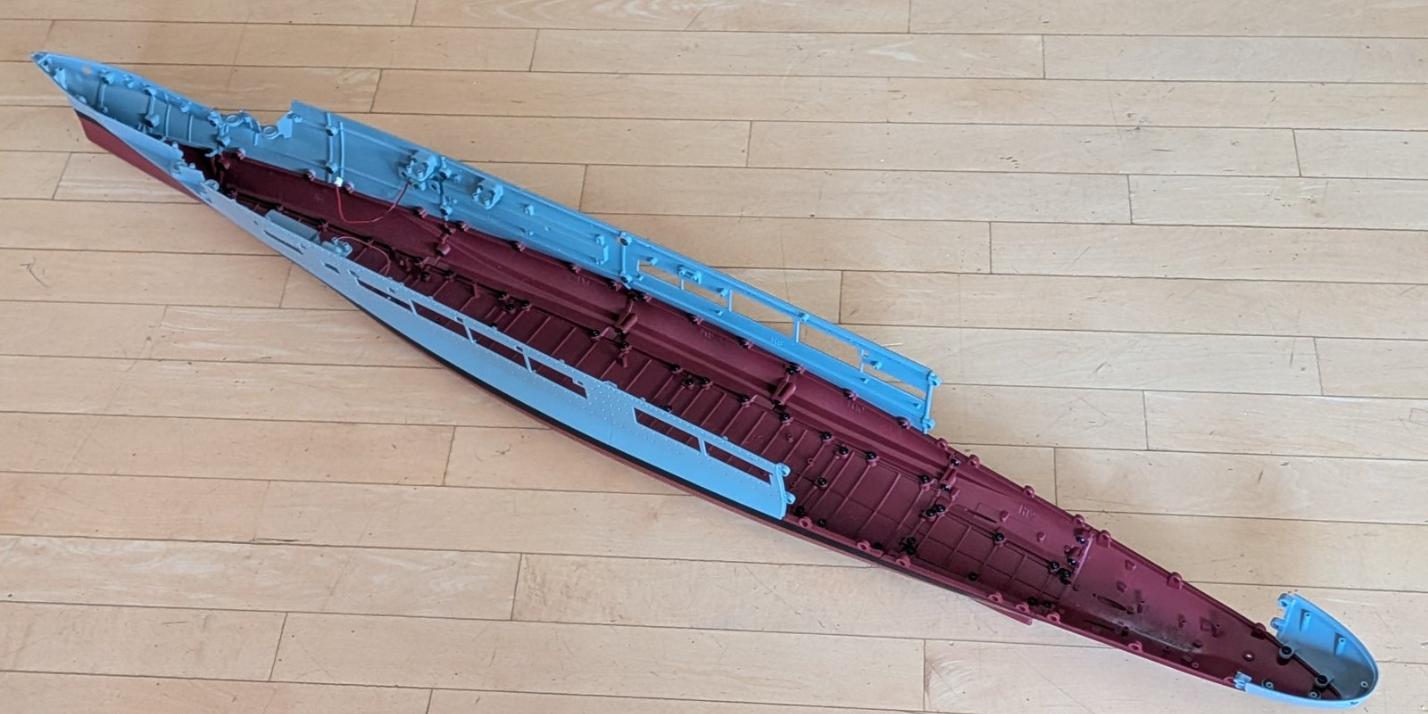

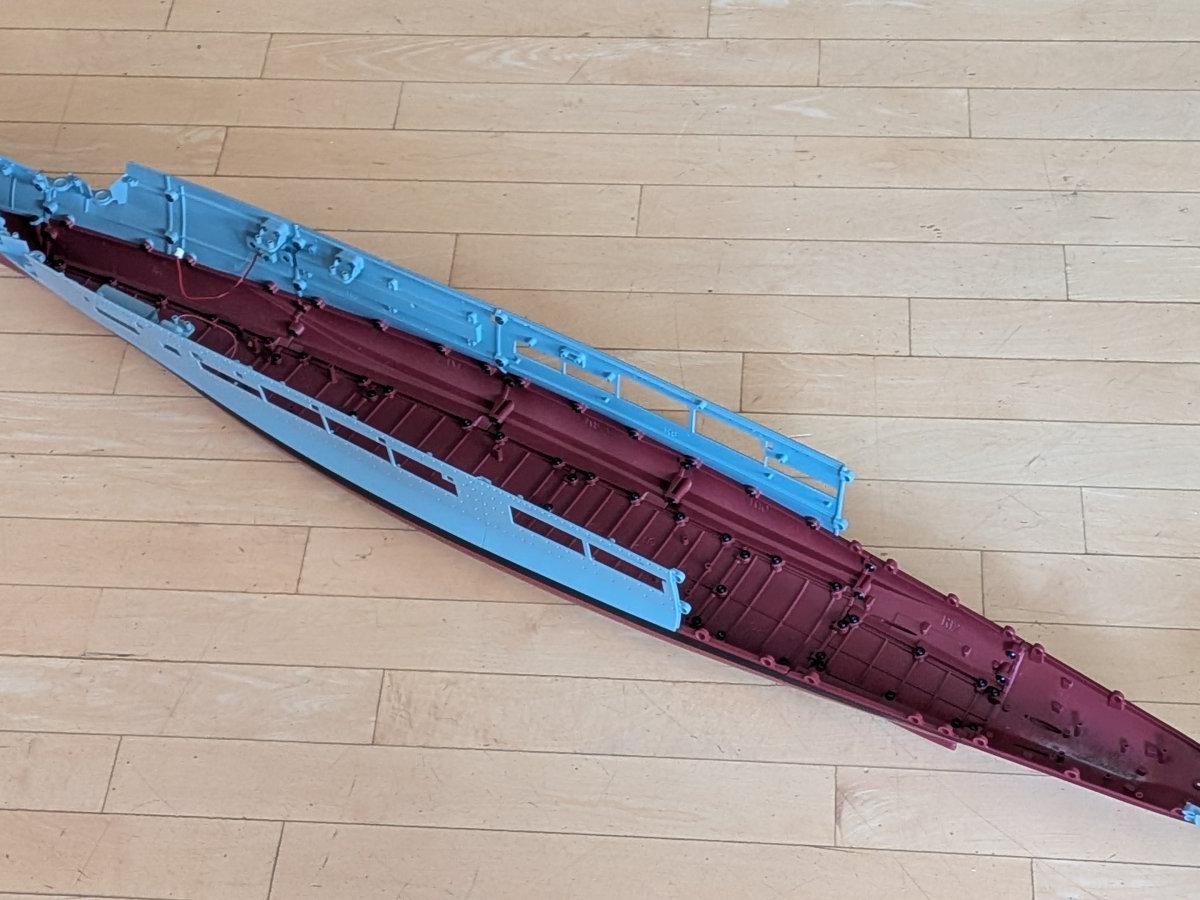

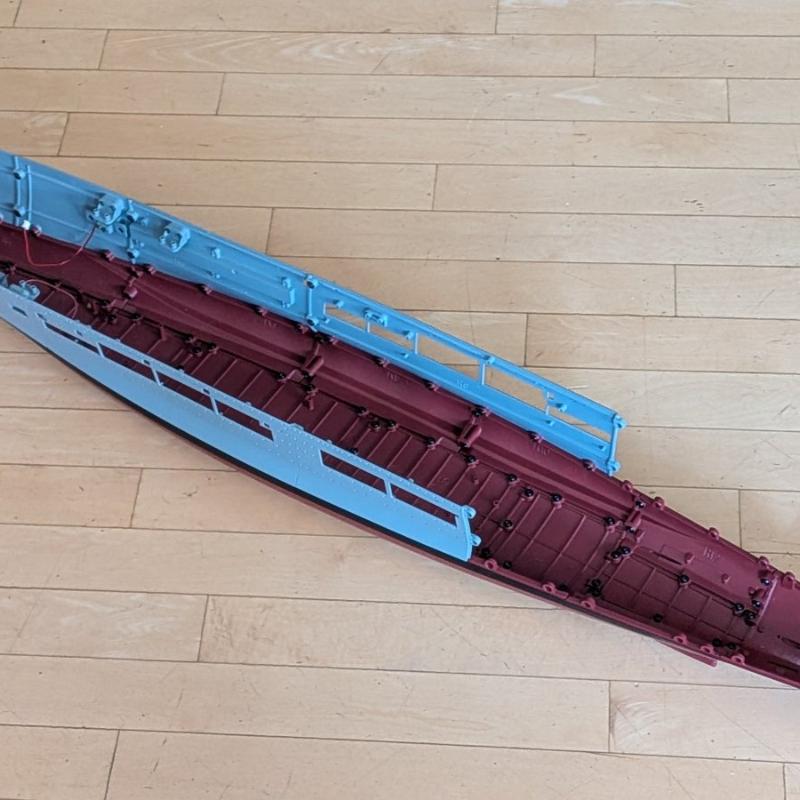

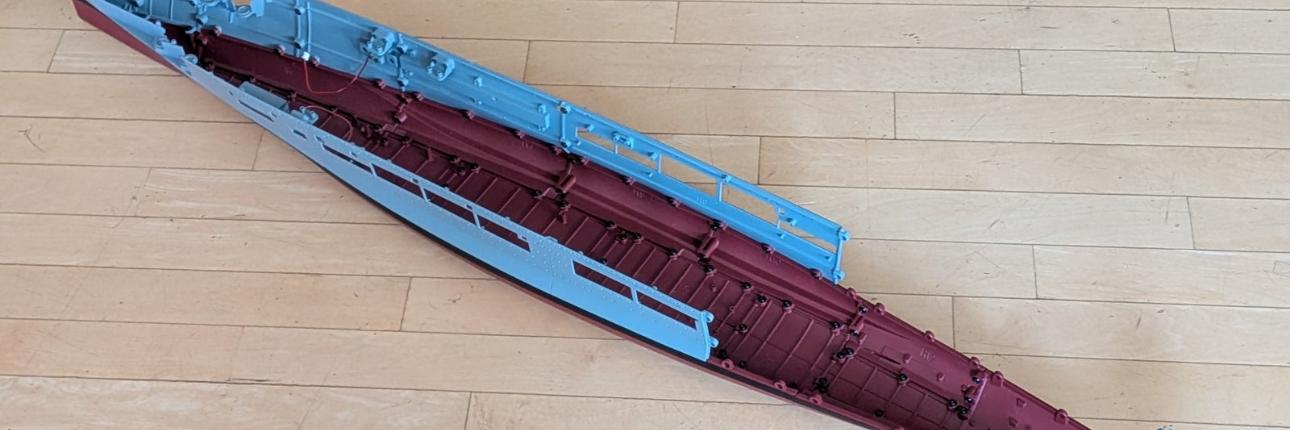

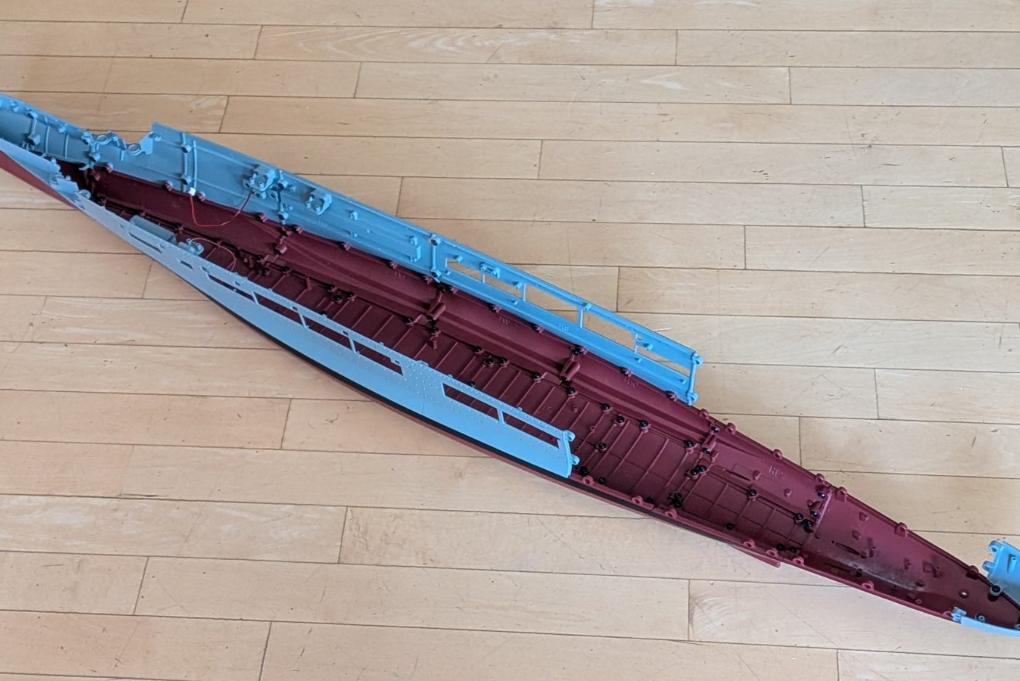

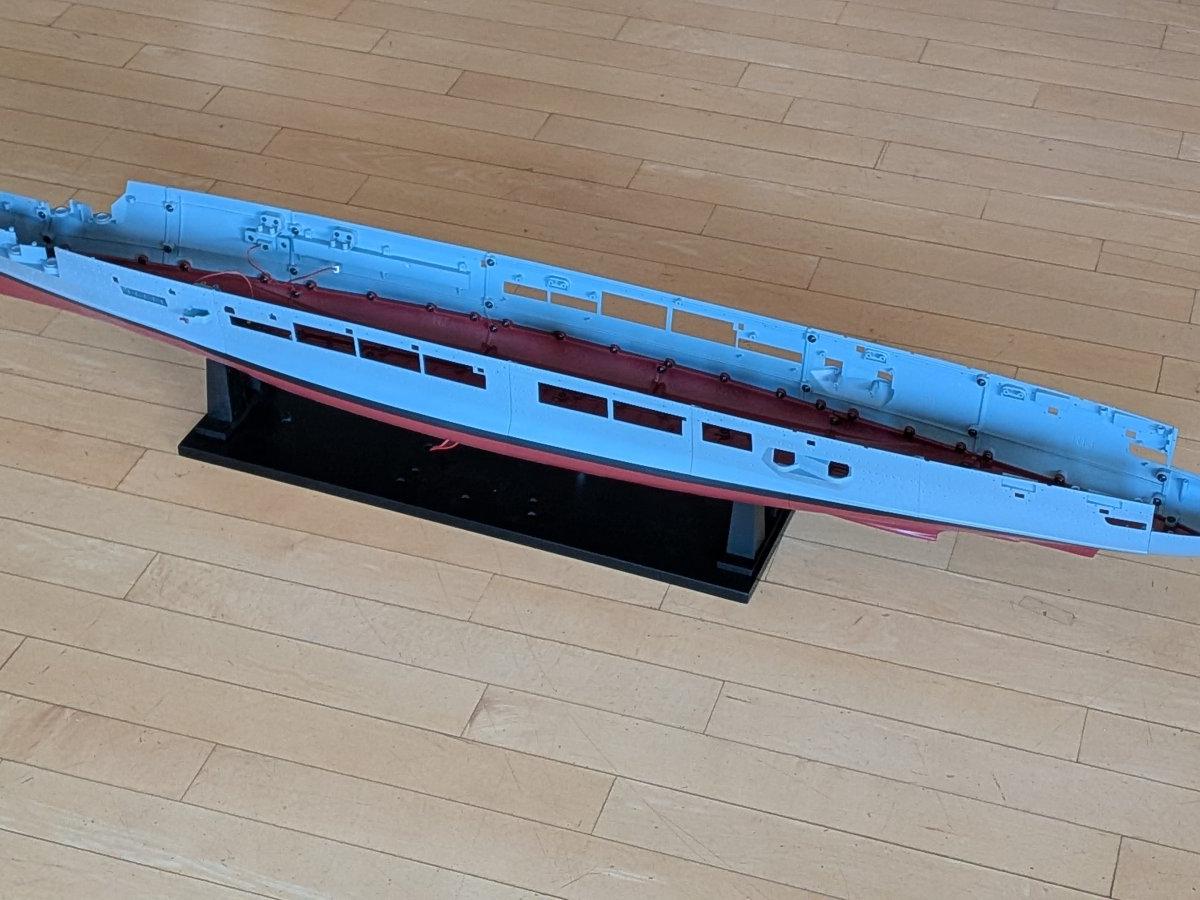

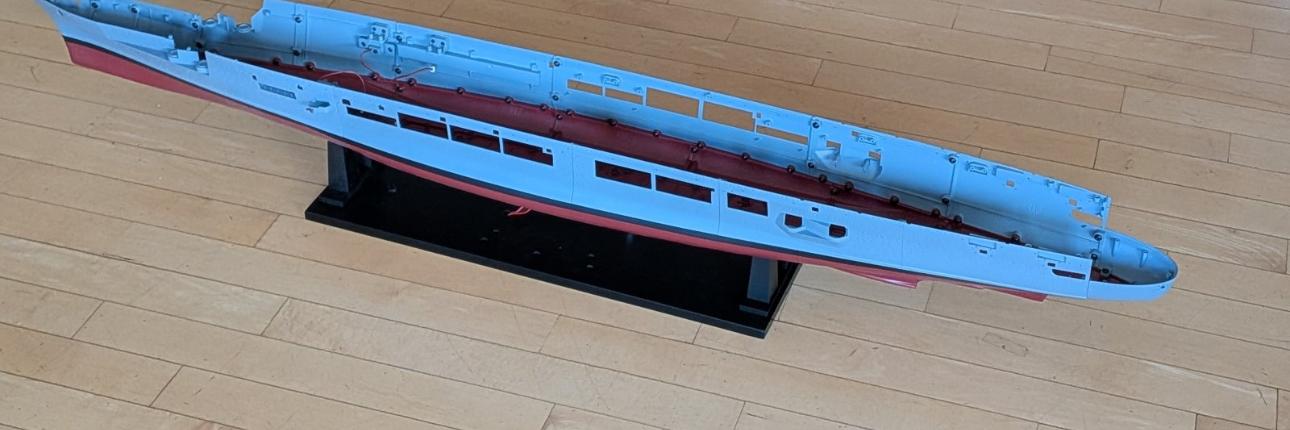

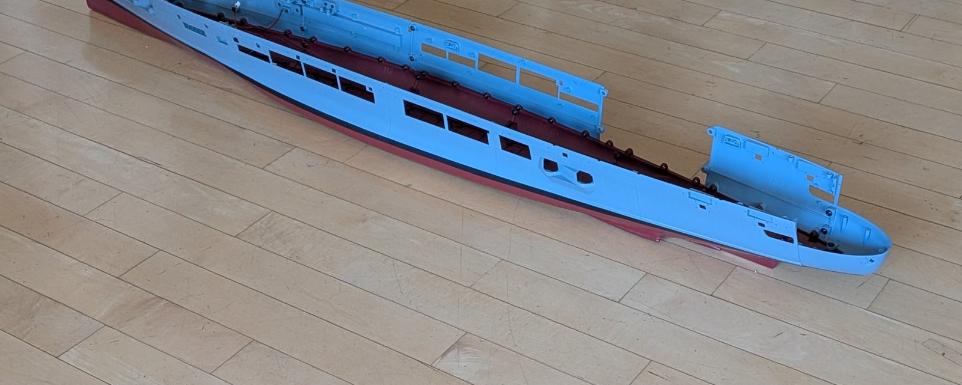

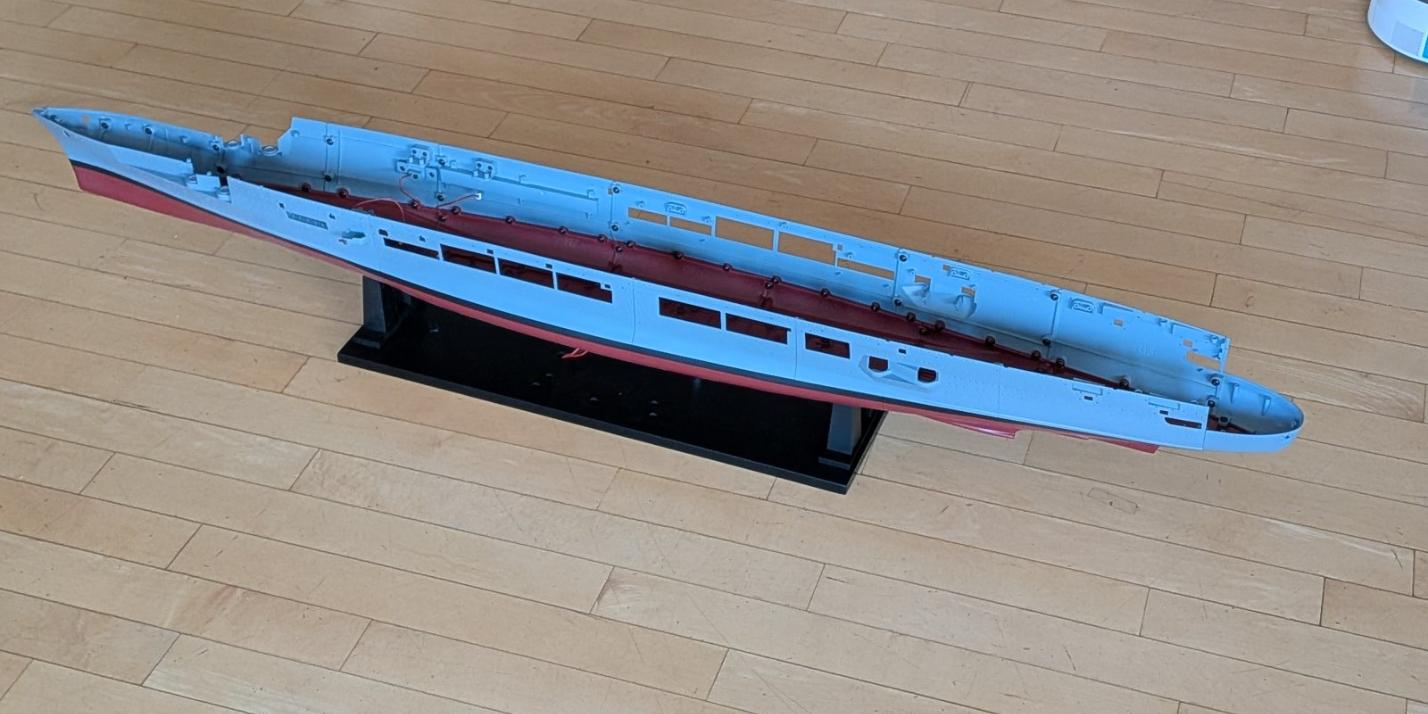

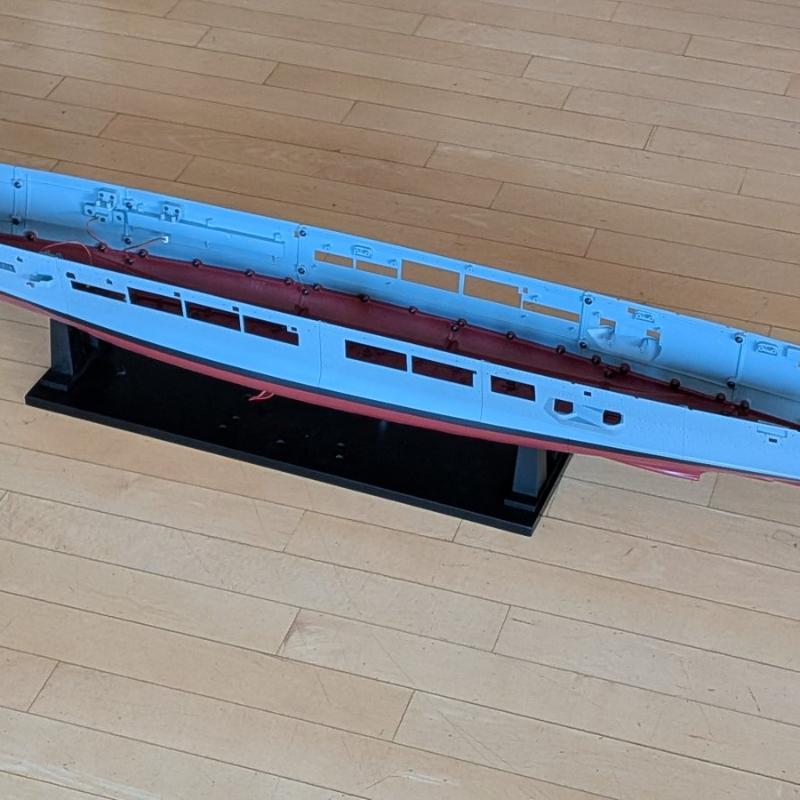

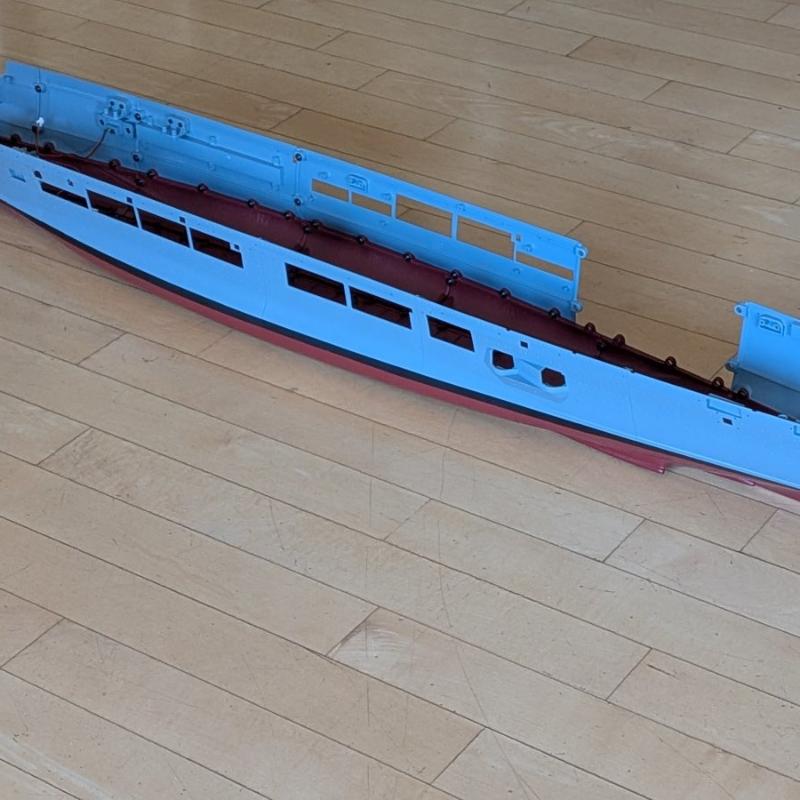

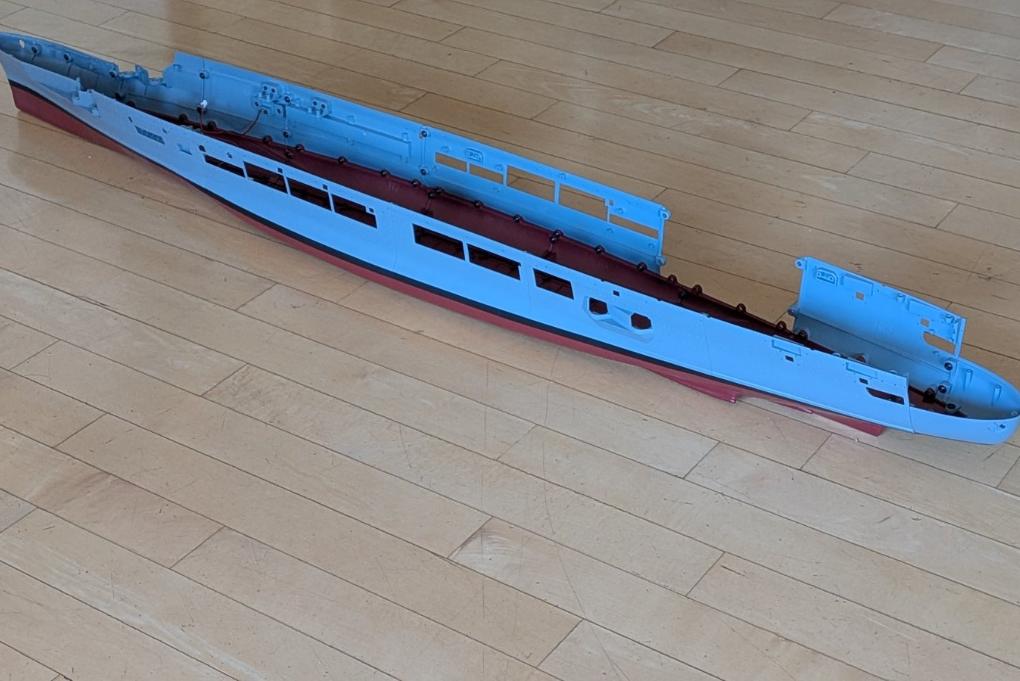

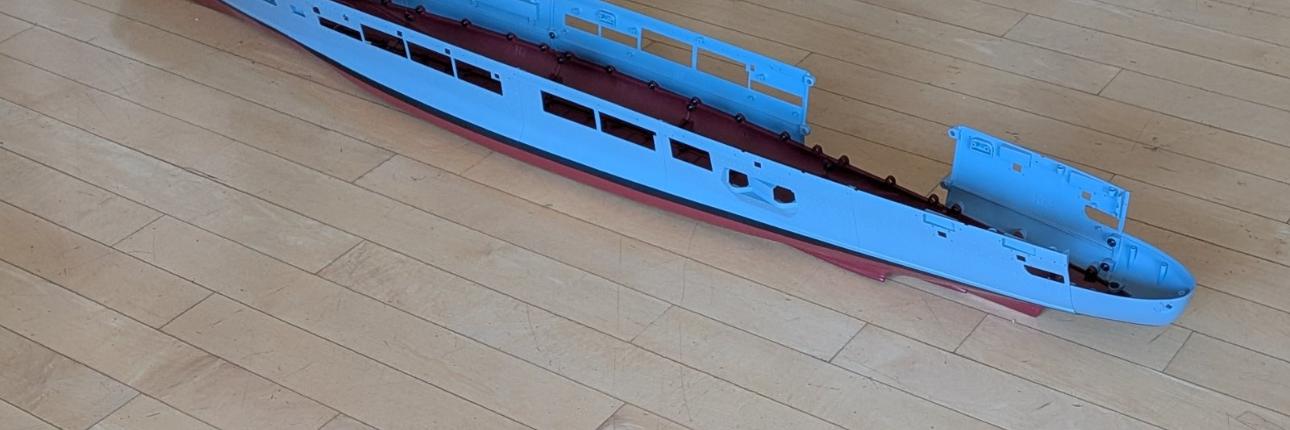

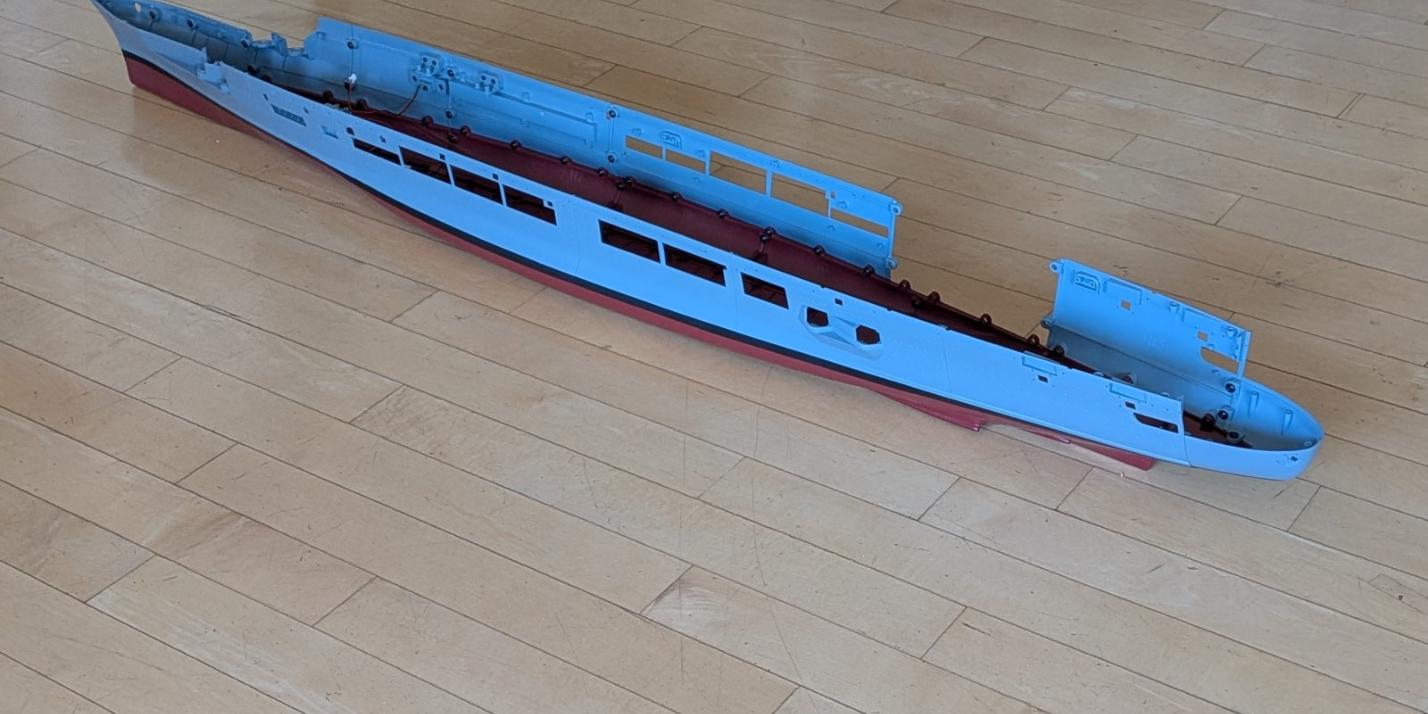

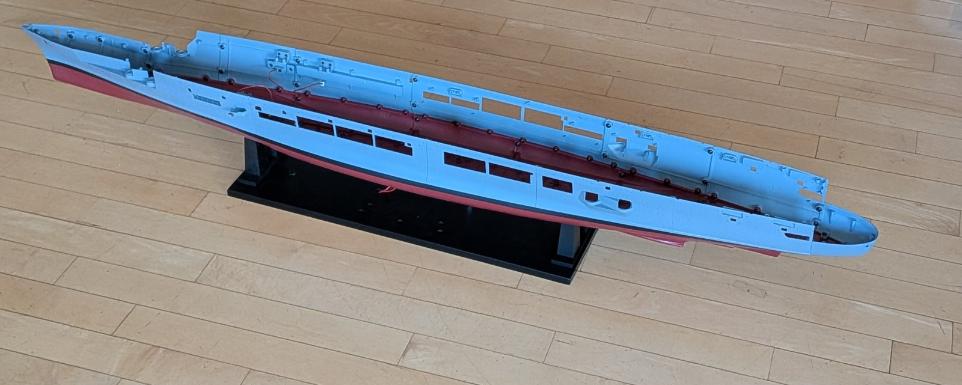

Hachette Graf Zeppelin construction so far
Steps 1-5

Step 1: Initial Assembly and Electrical Testing

The initial stage of construction involves several key components: the two foremost bow parts, a Ju 87 dive bomber, and a test board designed to verify the model's electrical functions.

The bow parts are screwed together, forming the initial section of the model's structure. Following this, the Ju 87 is equipped with its propeller. The dive bomber is then placed on the test board to immediately verify the proper function of its engine, ensuring everything is operational from the outset.

Step 2: Foremost Deck Assembly and Weaponry

This step involves assembling the foremost deck section and integrating its key features. The deck parts are carefully put together, and its wooden cover is affixed, providing a realistic finish. Various details are attached to this deck covering, enhancing its authenticity.

A pivotal addition in this phase is the 3.7 cm AA gun. This gun isn't just a static model; it simulates firing with a blinking LED to represent muzzle flash. The gun is mounted on its platform and fitted with this pre-tested LED. Just like in the previous step, the gun's LED function is tested with the test board from Step 1, ensuring its operational readiness.

Step 3: Catapult Assembly and Ju 87 Preparation

This step focuses on preparing the model's first catapult and readying the previously assembled Ju 87 dive bomber for launch.

The first catapult is assembled and then checked for free movement, ensuring it operates smoothly. While an electrical motor will position it later, this initial check confirms its mechanical readiness.

The Ju 87 from Step 1 receives its landing gear legs and is armed with four bombs. Finally, the completed Ju 87 is mounted onto its launch rack on the catapult. A propeller function test is then performed while the Ju 87 is on the catapult, verifying its operational status just before potential deployment.

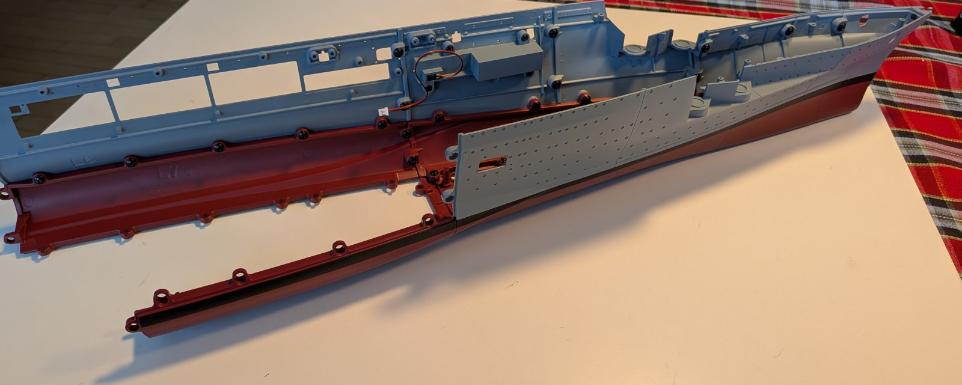

Step 4: Hull Construction

This segment, involves adding a keel section and the initial upper starboard hull section to the model's structure. This process contributes to the overall growth of the hull.

The installation of three support strut parts on the lower deck is also part of this step, these components are intended to support the upcoming flight deck. It was observed that the largest of these struts presents a challenge in fitting precisely into its designated holes on the flight deck.

Future steps will require the use of screws to secure hull sections. It is anticipated that appropriate tools will be beneficial, particularly when attaching the opposing hull section.

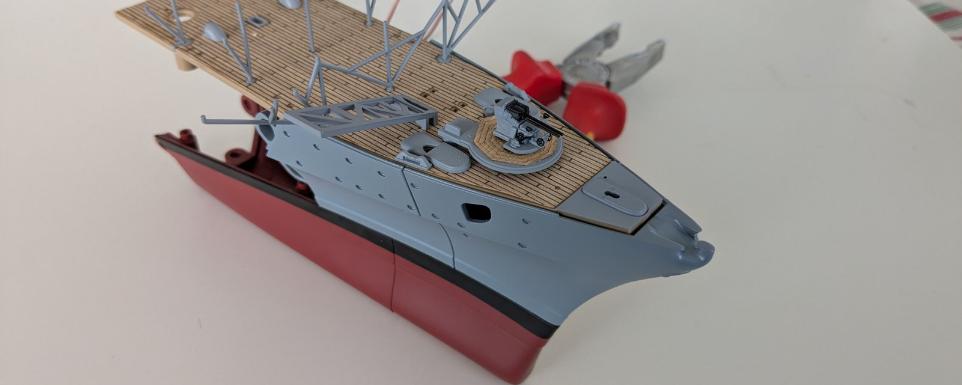

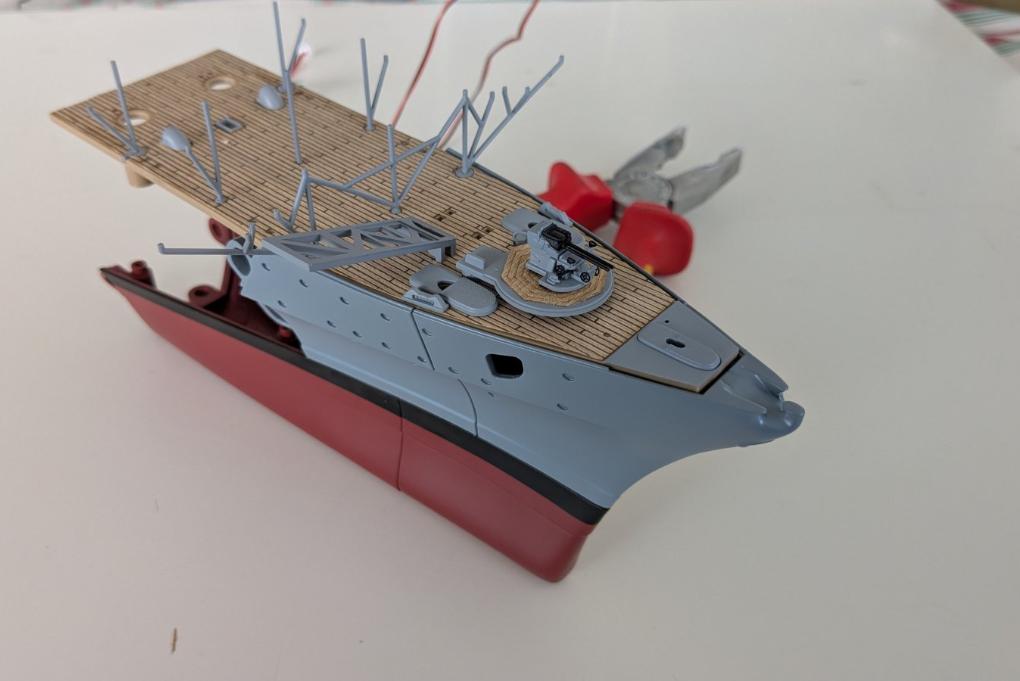

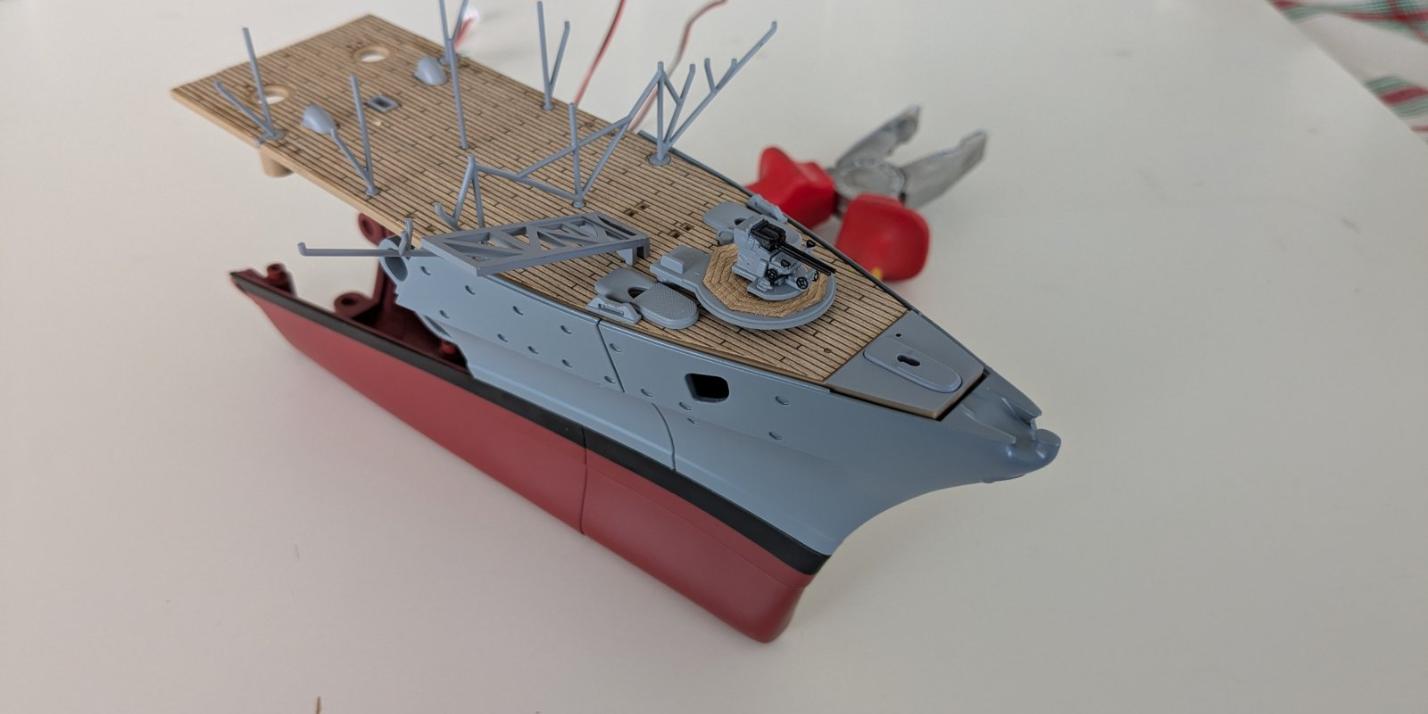

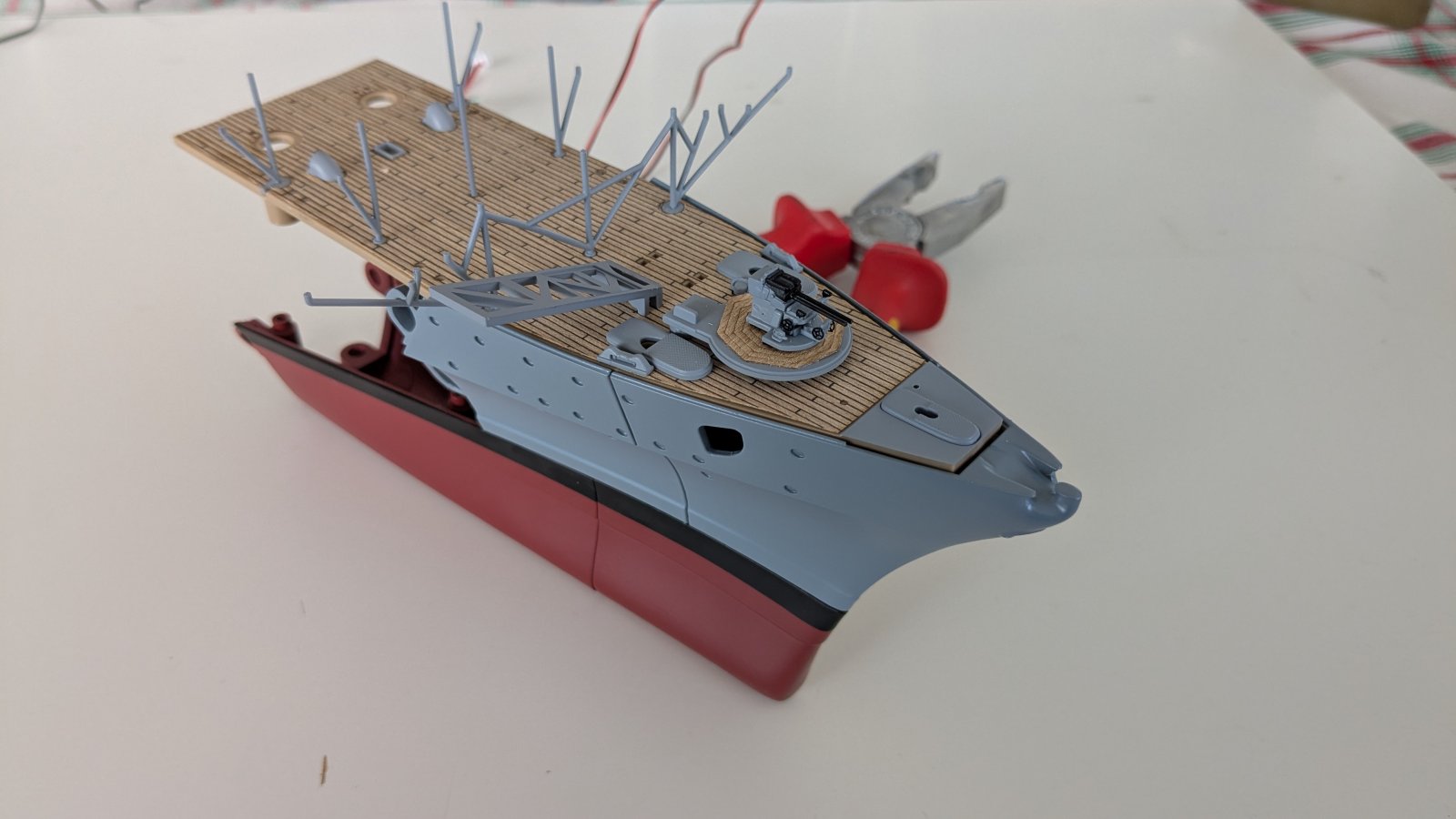

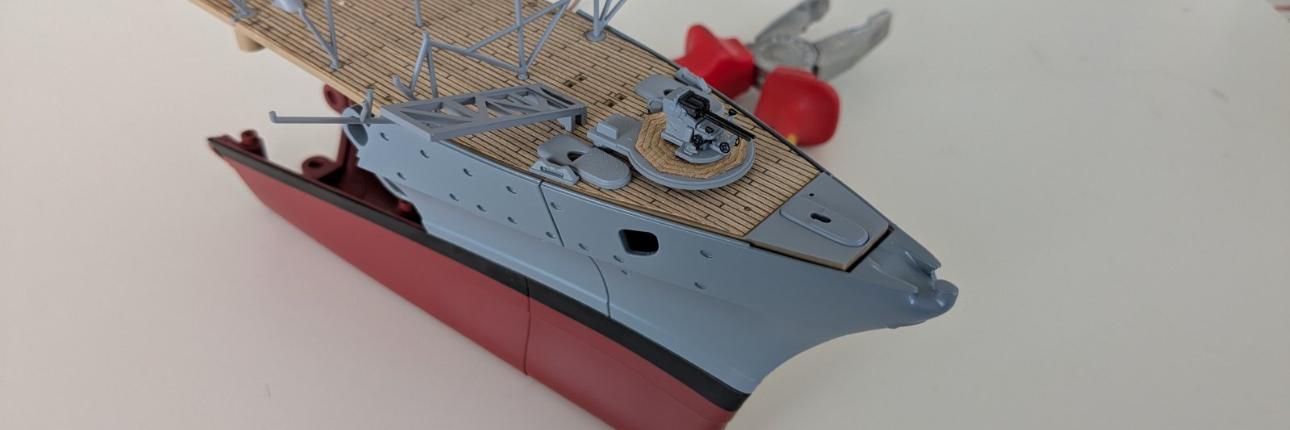

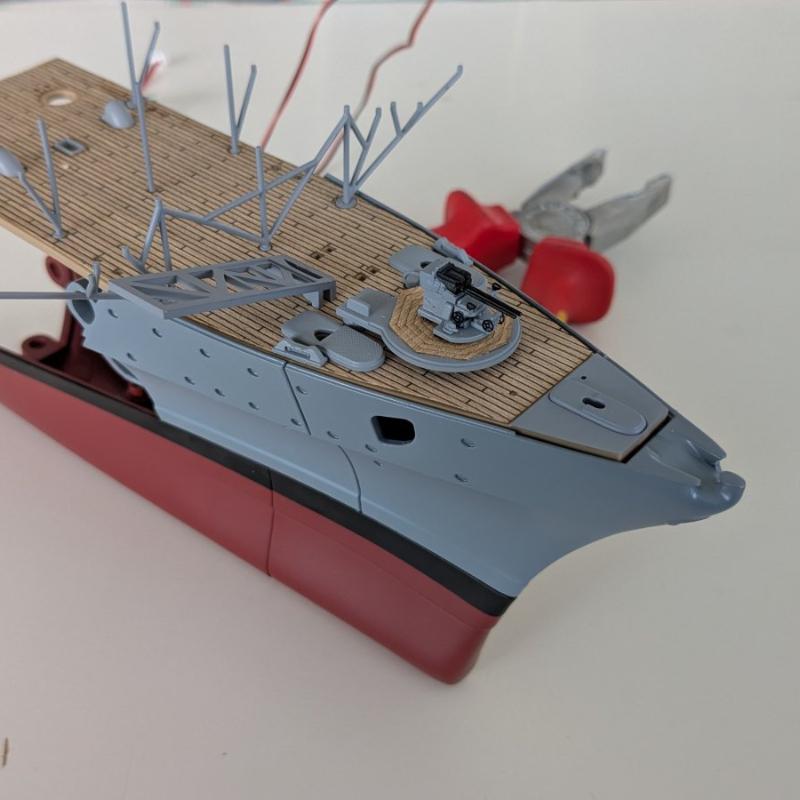

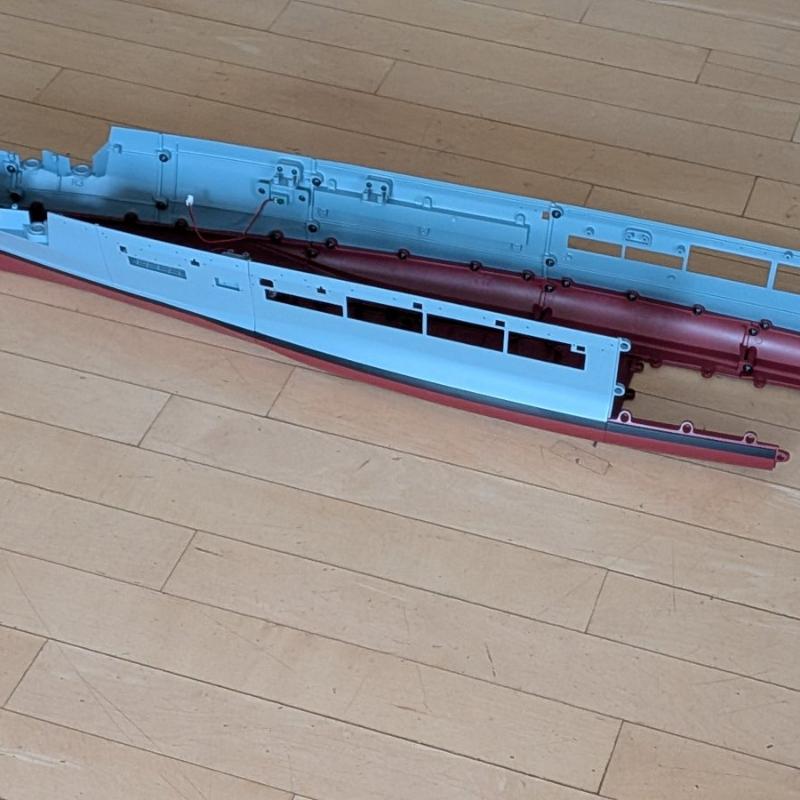

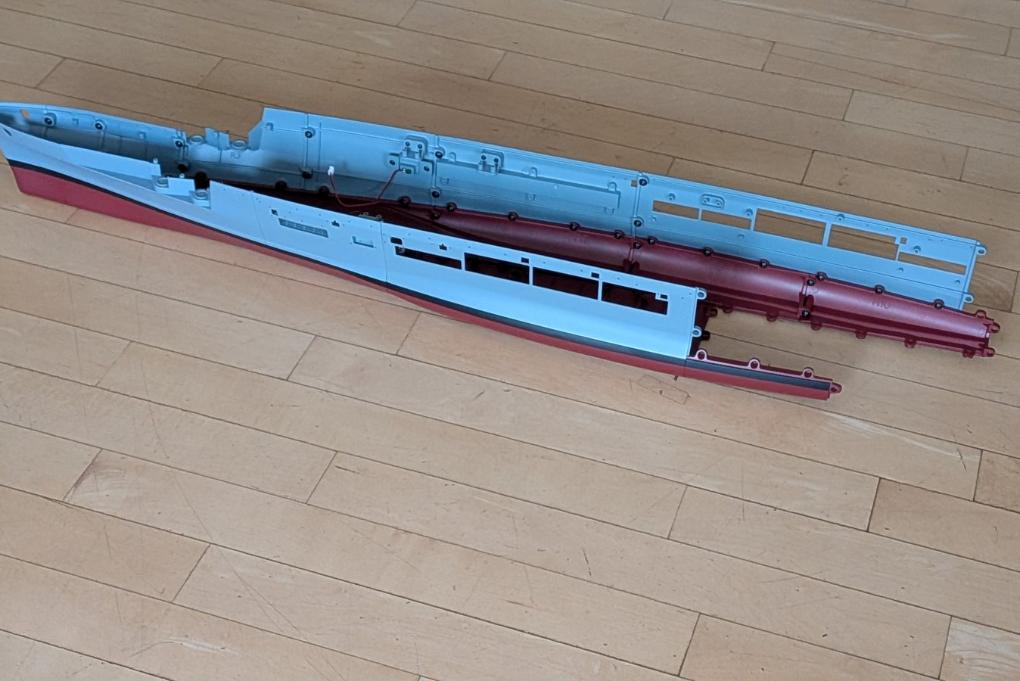

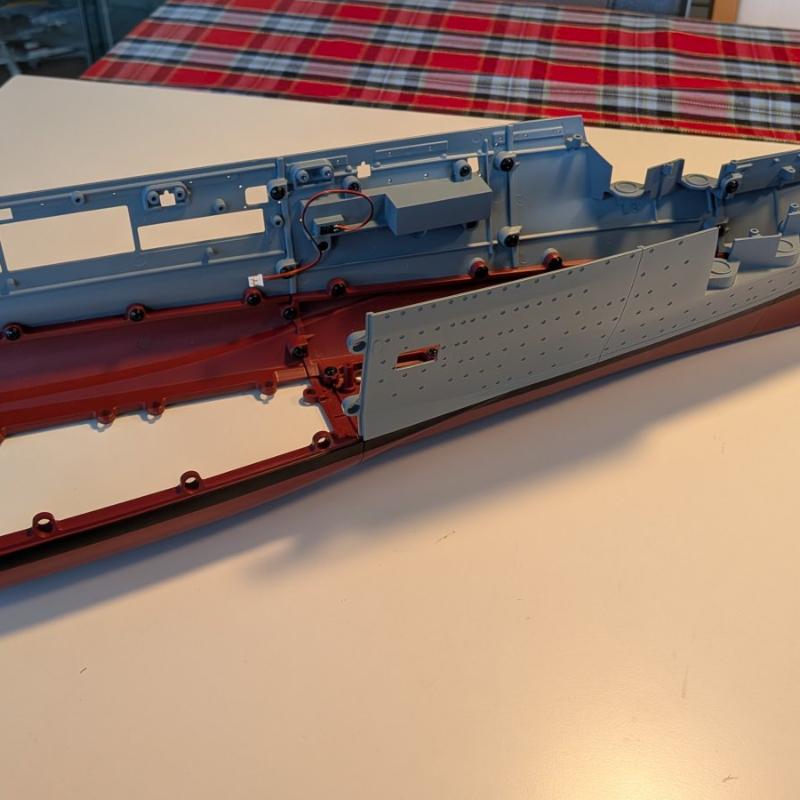

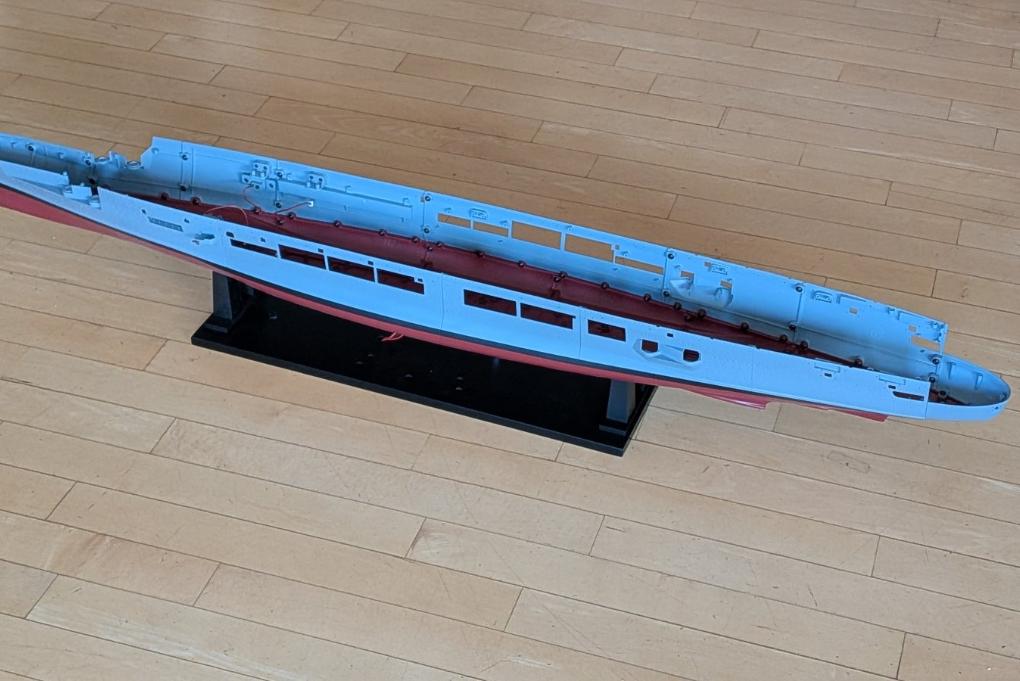

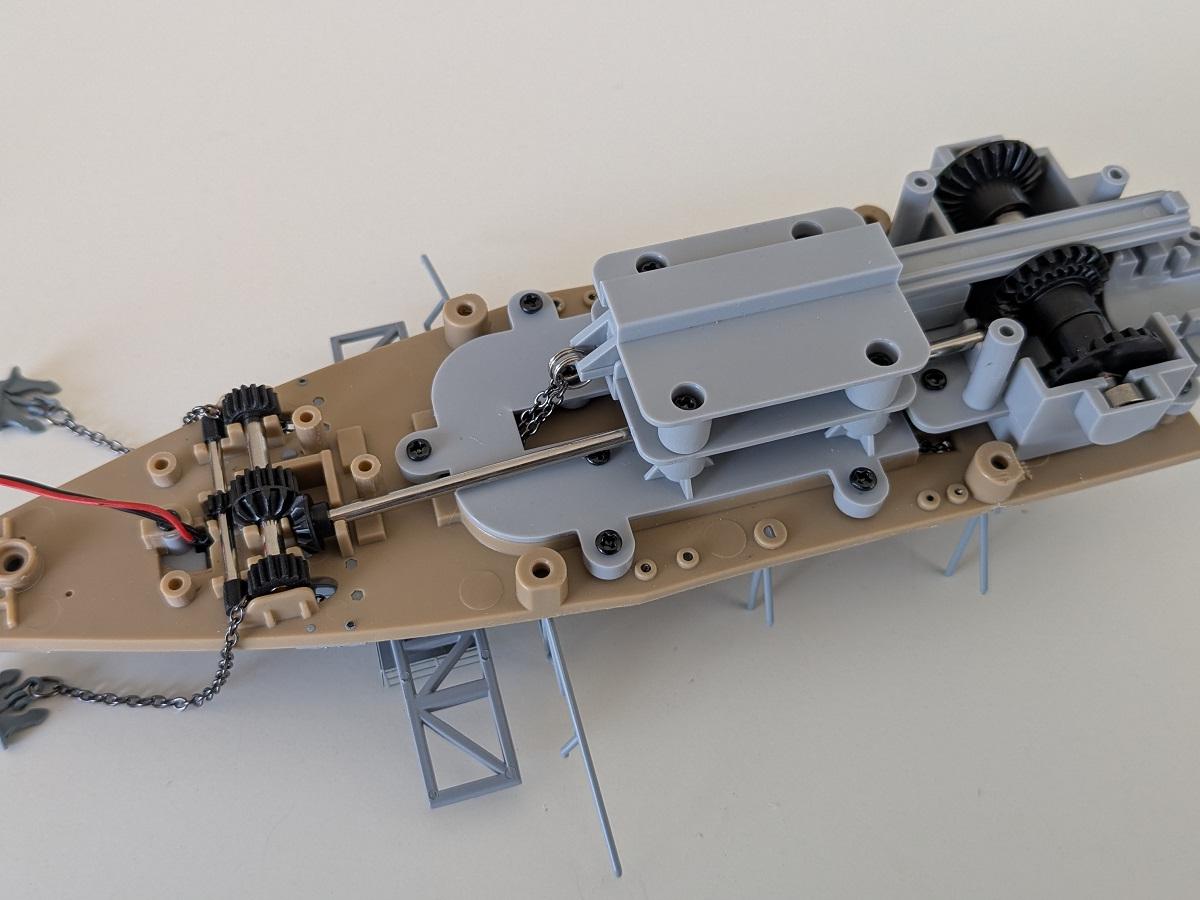

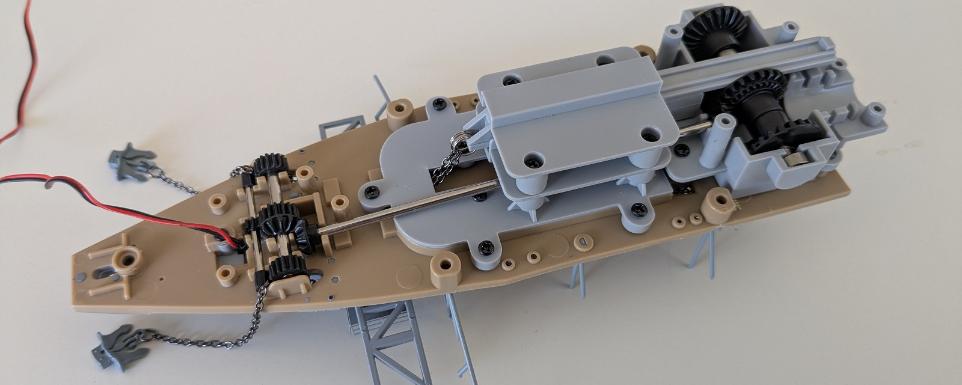

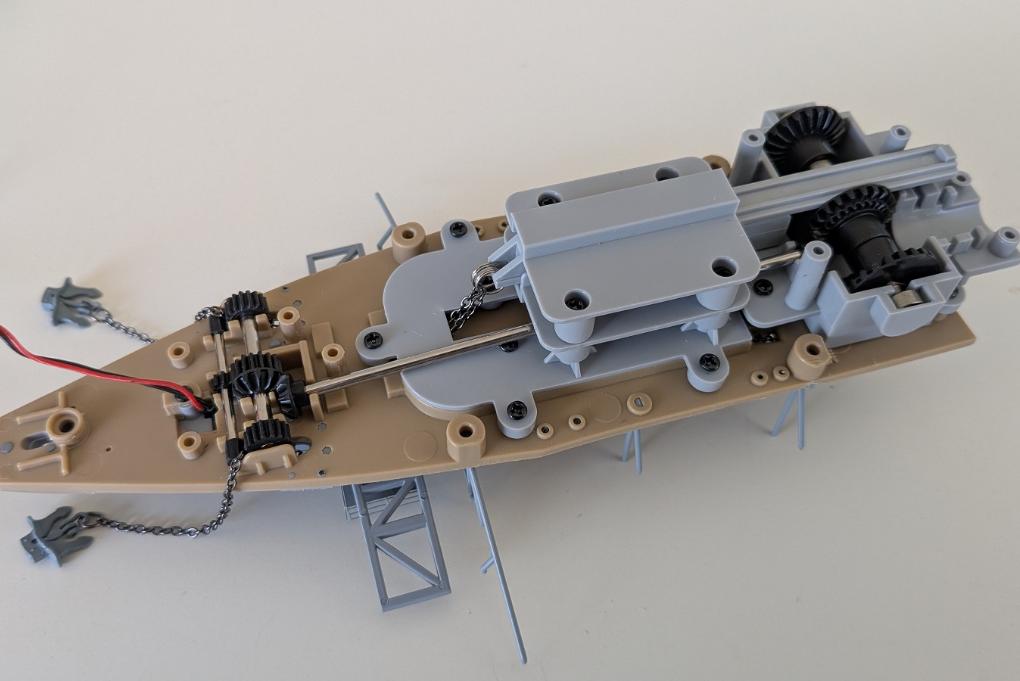

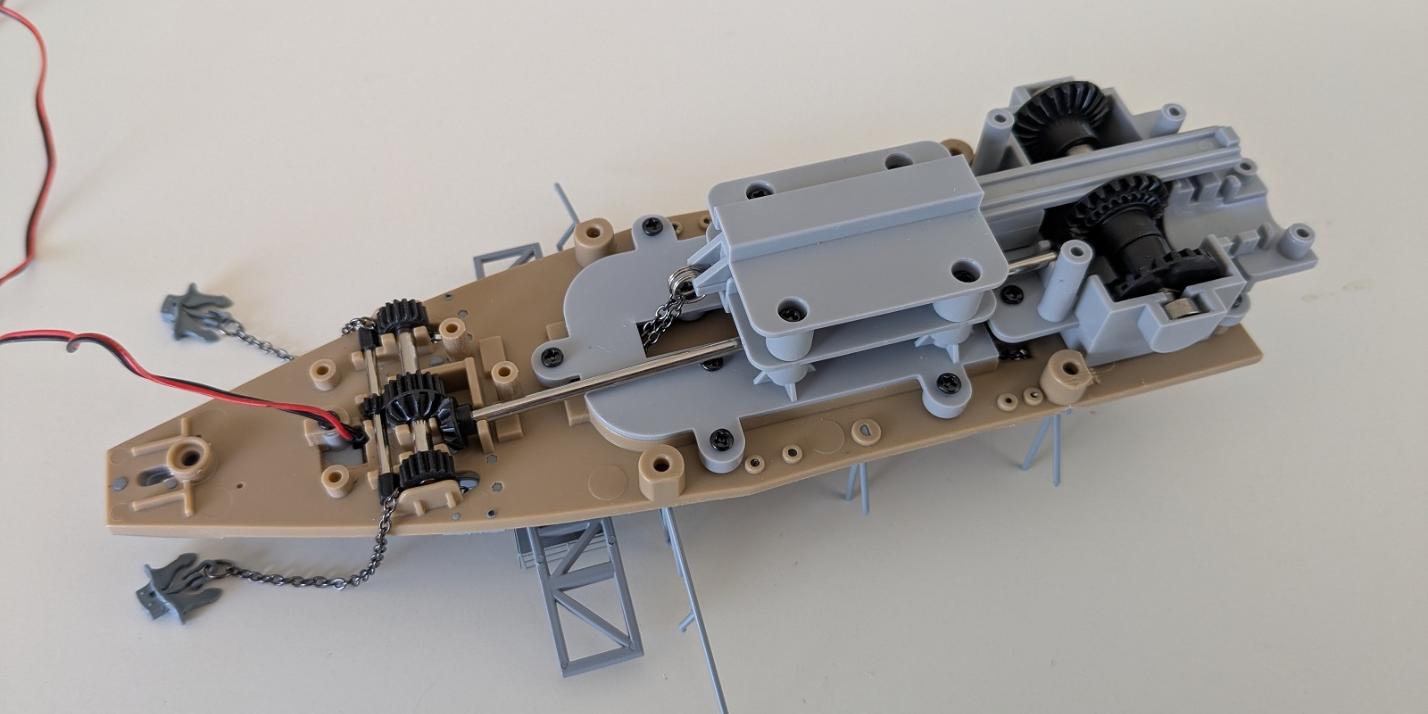

Step 5: A left hull section

Another hull section is mounted on the left side of the main structure. Fastening the upper screw can be a bit challenging due to the limited working space.

On the lower deck, three more support struts and the right inclined elevator (used for the catapult trolleys) are installed. As with the previous step, some of the struts don't fit perfectly, so care must be taken to avoid damaging them.
